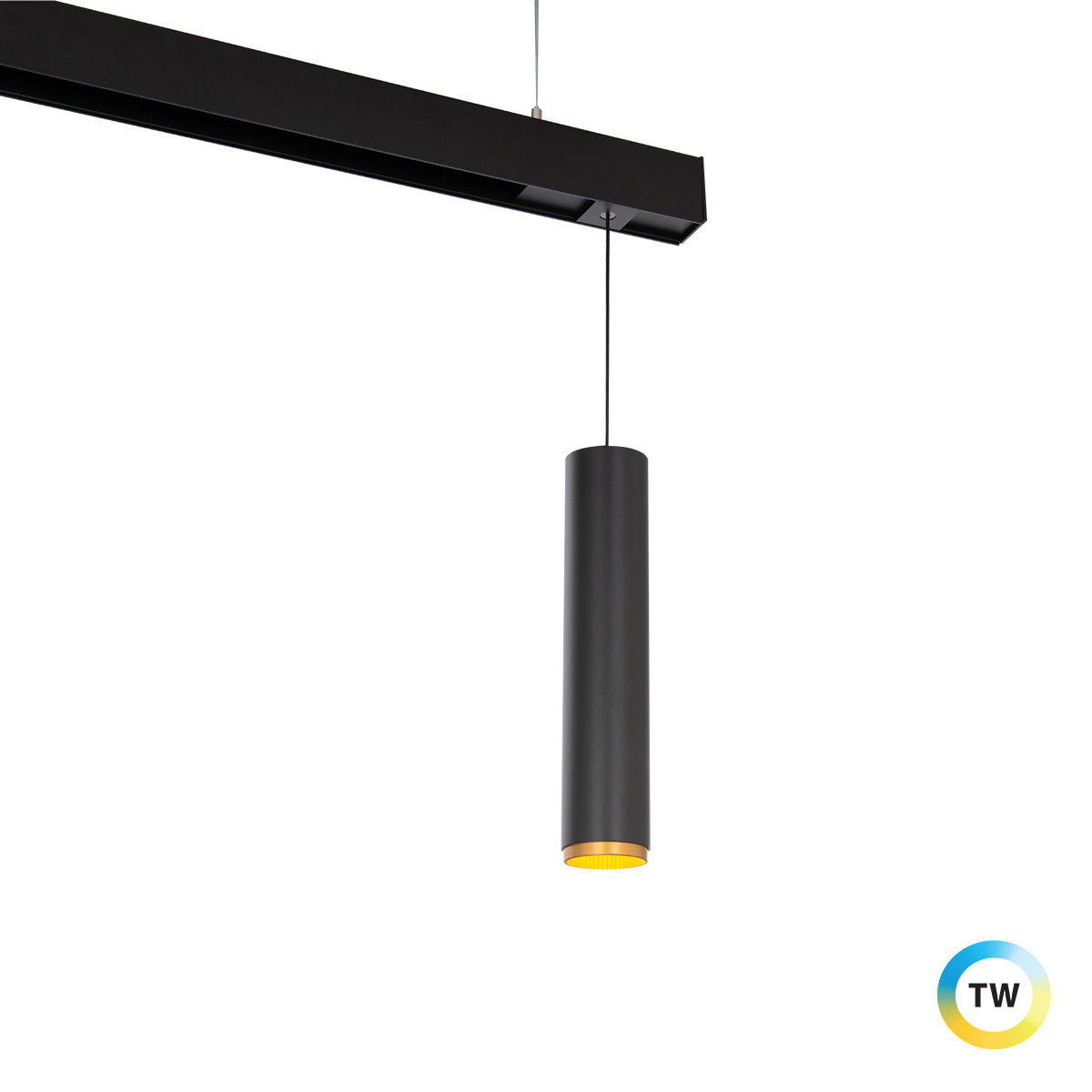

VENTRIX Tunable White Silo Pendants

NEW

NEW

Order Number:

model	size	watt	color temp & cri	delivered lumens	cbcp	finish
S2PD01	2	18W	TWA - 1800-4000K - 90	25°: 680 / 40°: 900	25°: 1805 / 40°: 1290	BKBK - Black/Black
S2PD01	2	18W	TWA - 1800-4000K - 90	25°: 680 / 40°: 900	25°: 1805 / 40°: 1290	BKGL - Black/Gold
S2PD01	2	18W	TWA - 1800-4000K - 90	25°: 680 / 40°: 900	25°: 1805 / 40°: 1290	BKWT - Black/White
S2PD01	2	18W	TWA - 1800-4000K - 90	25°: 680 / 40°: 900	25°: 1805 / 40°: 1290	WTBK - White/Black
S2PD01	2	18W	TWA - 1800-4000K - 90	25°: 680 / 40°: 900	25°: 1805 / 40°: 1290	WTGL - White/Gold
S2PD01	2	18W	TWA - 1800-4000K - 90	25°: 680 / 40°: 900	25°: 1805 / 40°: 1290	WTWT - White/White

Delivered Lumens: 900lm
CBCP: 1805
CCT: 1800-4000K
CRI: 90
Power: 18W
Input: 48 VDC
ELV Dimming: 100-0.1%
0-10V Dimming: 100-0.1%
TRIAC Dimming: 100-0.1%
DMX Dimming: 100-0.1%
Rated Life: 50000 Hours
Construction: Extruded aluminum with PC retractable accenting collar
Retractable accenting collar can be rotated for continuous beam adjustment
Easy wiring adjustment with cable-gripper on fixture body
Retractable accenting collar available in multiple finishes extends up to 3/8" to create two-tone finish
No splicing required for pendant height adjustment on VENTRIX
Driver concealed within the VENTRIX adapter
To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
Driver concealed within the fixture
