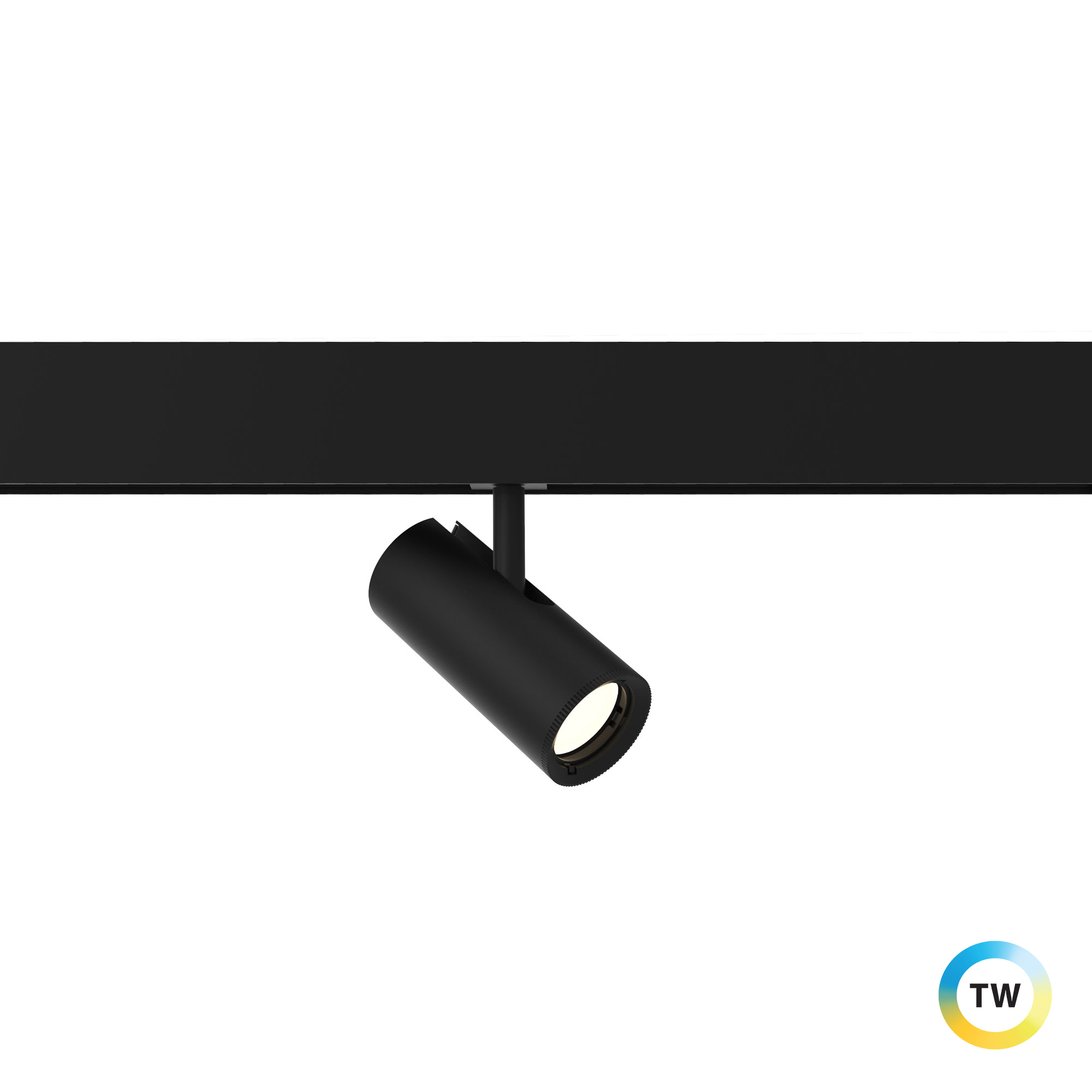

VENTRIX Tunable White Silo S2SA-2

NEW

NEW

Order Number:

model & size	power	watt	beam	color temp & cri	delivered lumens	cbcp	finish
S2SA	2	29W	F - 40°	TWA - 1800-4000K - 90	1745	3295	BK - Black
S2SA	2	29W	F - 40°	TWA - 1800-4000K - 90	1745	3295	WT - White
S2SA	2	29W	N - 30°	TWA - 1800-4000K - 90	1700	4790	BK - Black
S2SA	2	29W	N - 30°	TWA - 1800-4000K - 90	1700	4790	WT - White
S2SA	2	29W	W - 55°	TWA - 1800-4000K - 90	1600	1180	BK - Black
S2SA	2	29W	W - 55°	TWA - 1800-4000K - 90	1600	1180	WT - White

Delivered Lumens: Up to 1745lm
CBCP: Up to 4790
CCT: 1800-4000K
CRI: 90
Power: 29W
Input: 48 VDC
ELV Dimming: 100-0.1%
0-10V Dimming: 100-0.1%
TRIAC Dimming: 100-0.1%
DMX Dimming: 100-0.1%
Rated Life: 50000 Hours
Construction: Die-cast aluminum
Adjustable accent elements with high lumen output.
Stealth armature with 360° horizontal rotation and 90° vertical aiming
Accepts one lens and glare control accessory
To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
Narrow Flood, Flood, Wide Flood optics are field changeable.
Driver concealed within the fixture
Can be mounted on ceiling or wall vertically or horizontally
