VENTRIX Tunable White Stealth Downlights

NEW

NEW

Order Number:

model & size	power	watt	beam	color temp & cri	delivered lumens	cbcp	finish
S2SD	1	10.5W	F - 40°	TWA - 1800-4000K - 90	540	800	BK - Black
S2SD	1	10.5W	F - 40°	TWA - 1800-4000K - 90	540	800	CH - Chrome
S2SD	1	10.5W	F - 40°	TWA - 1800-4000K - 90	540	800	GL - Gold
S2SD	1	10.5W	F - 40°	TWA - 1800-4000K - 90	540	800	HZ - Haze
S2SD	1	10.5W	F - 40°	TWA - 1800-4000K - 90	540	800	WT - White
S2SD	1	10.5W	N - 25°	TWA - 1800-4000K - 90	510	1940	BK - Black
S2SD	1	10.5W	N - 25°	TWA - 1800-4000K - 90	510	1940	CH - Chrome
S2SD	1	10.5W	N - 25°	TWA - 1800-4000K - 90	510	1940	GL - Gold
S2SD	1	10.5W	N - 25°	TWA - 1800-4000K - 90	510	1940	HZ - Haze
S2SD	1	10.5W	N - 25°	TWA - 1800-4000K - 90	510	1940	WT - White

Delivered Lumens: Up to 540lm
CBCP: Up to 1940
CCT: 1800-4000K
CRI: 90
Power: 10.5W
Input: 48 VDC
ELV Dimming: 100-0.1%
0-10V Dimming: 100-0.1%
TRIAC Dimming: 100-0.1%
DMX Dimming: 100-0.1%
Rated Life: 50000 Hours
Construction: Die-cast aluminum with injection molded low glare trim
Low glare trim with 30° shielding angle

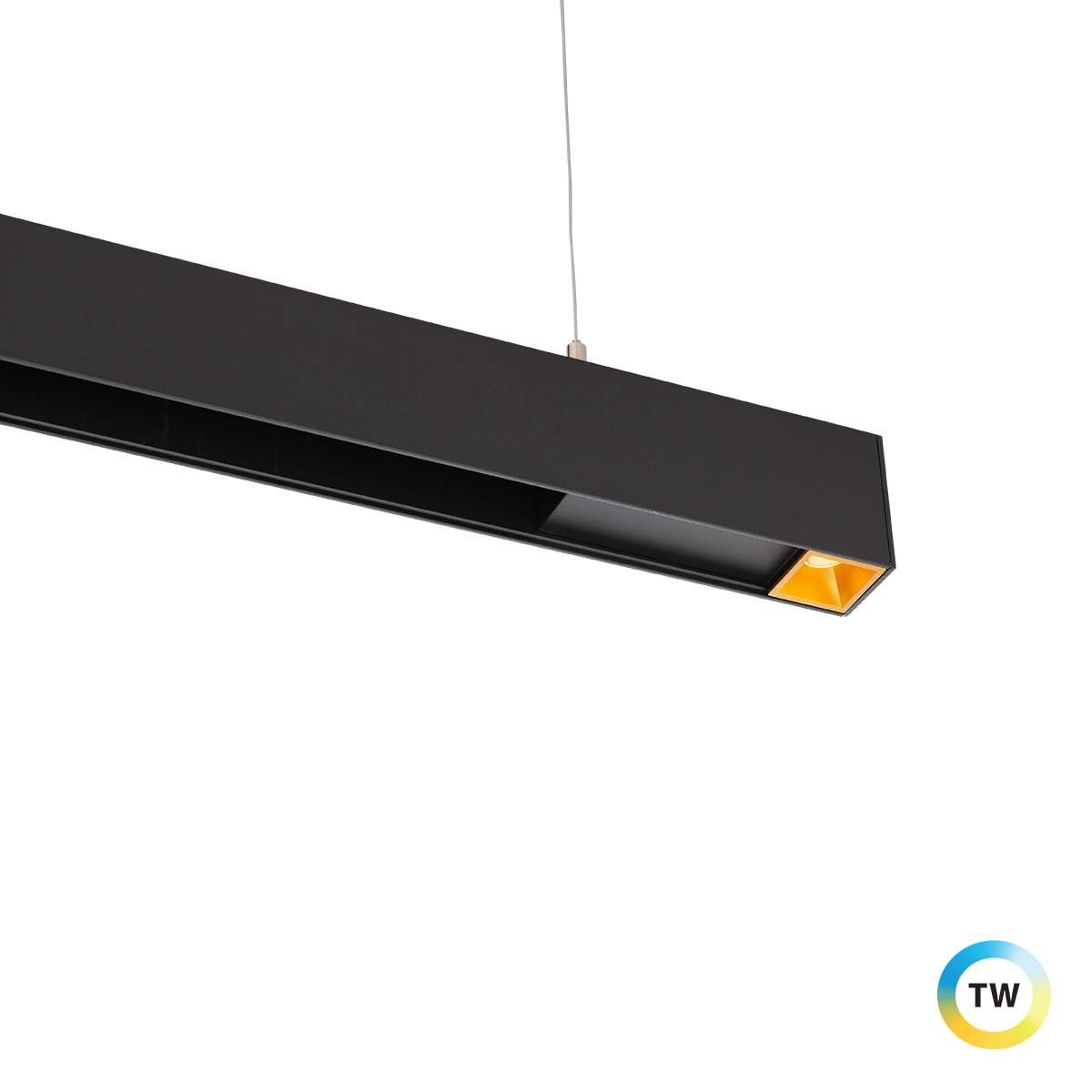

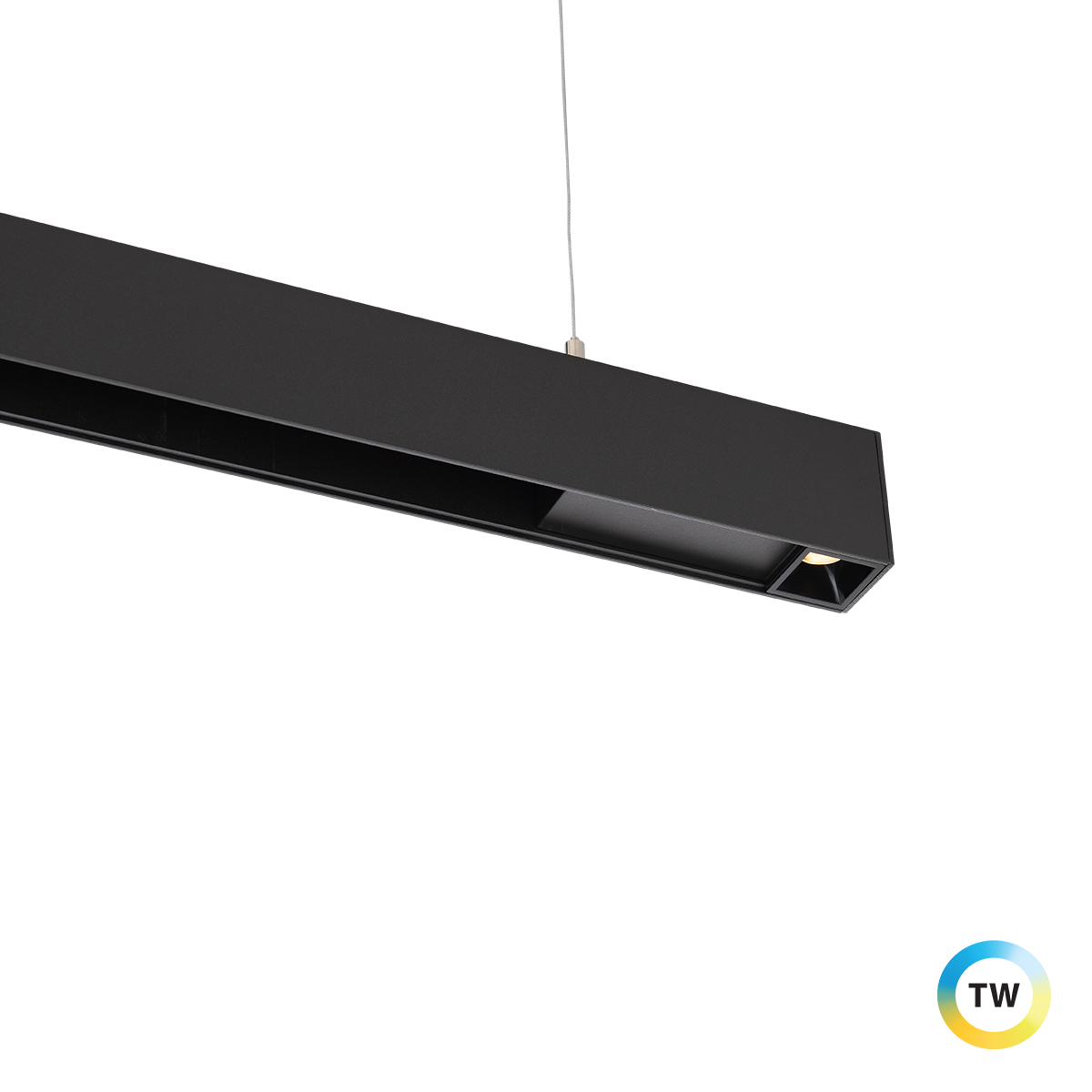

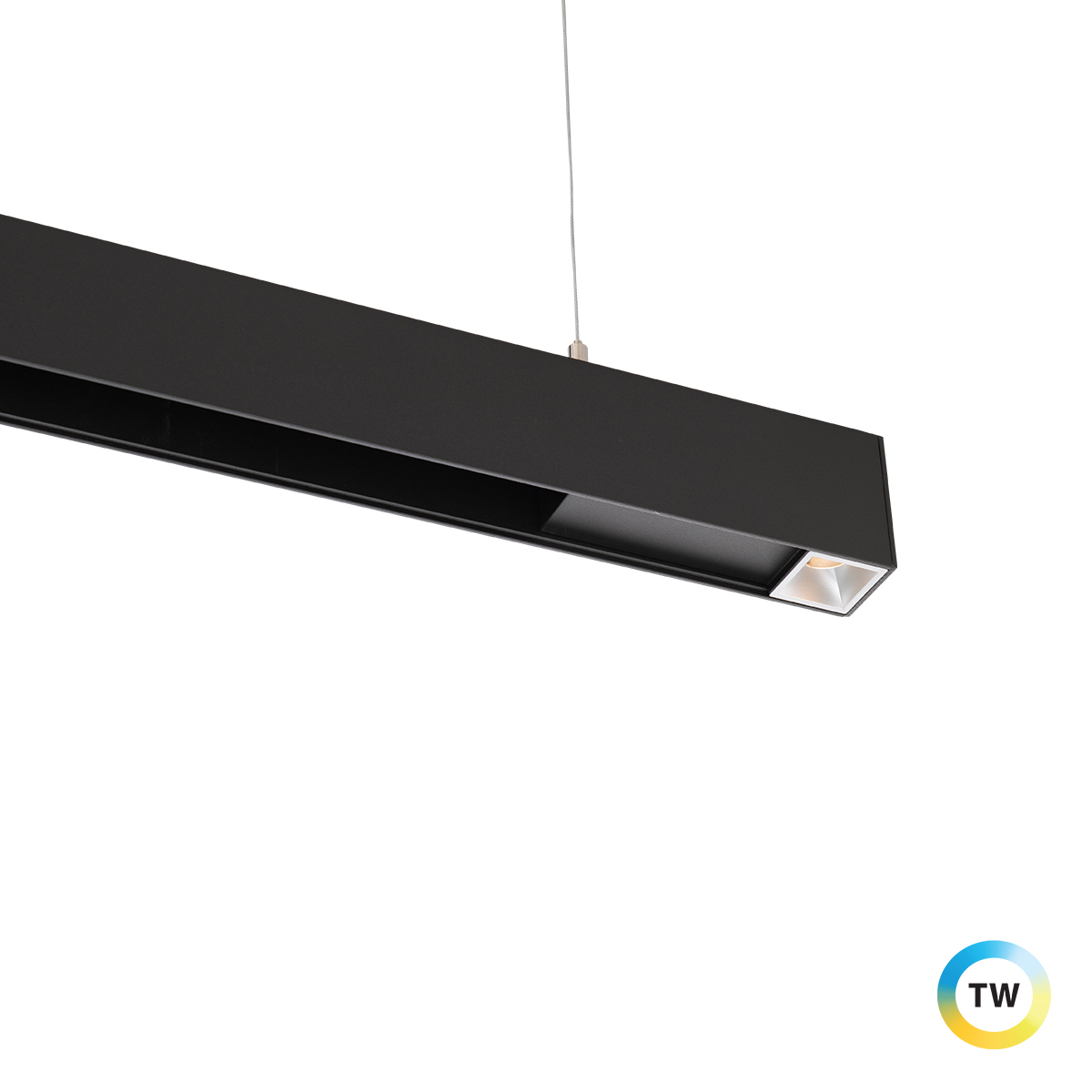

Interchangeable trim available in 5 finishes

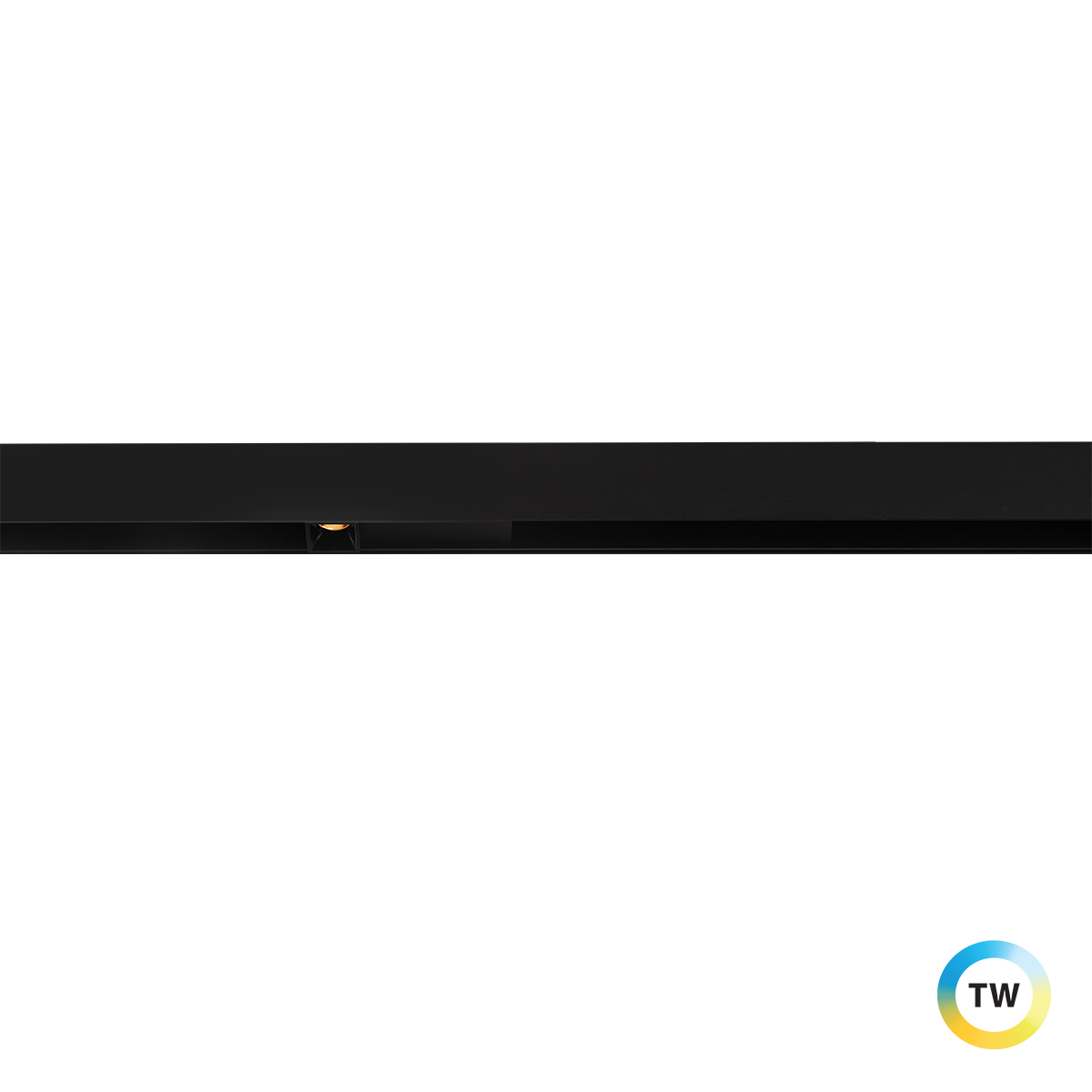

May be installed side by side or at end of VENTRIX channel
Stealth Downlight may be installed in corners or at the end of channel.
To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
Driver concealed within the fixture
Can be mounted on ceiling or wall vertically or horizontally
