Specifications
Order Number:
| model | power | watt | color temp & cri | delivered lumens | cbcp | finish |
|---|---|---|---|---|---|---|
| S2SS | 1 | 6.5W | TWA - 1800-4000K - 90 | 23°: 105 / 45°: 310 | 23°: 430 / 45°: 625 | BK - Black |
| S2SS | 1 | 6.5W | TWA - 1800-4000K - 90 | 23°: 105 / 45°: 310 | 23°: 430 / 45°: 625 | WT - White |
Features
- Delivered Lumens: 310lm
- CBCP: 625
- CCT: 1800-4000K
- CRI: 90
- Power: 6.5W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum with rotatable front face
- Continuously adjustable beam angle between 23° - 45°
- Stealth armature with 360° horizontal rotation and 90° vertical aiming
- These accent lights can fully retract within VENTRIX channels for a downlight configuration.
- Accepts one glare control accessory. Holder required sold seperately.
- Driver concealed within the fixture
- Can be mounted on ceiling or wall vertically or horizontally

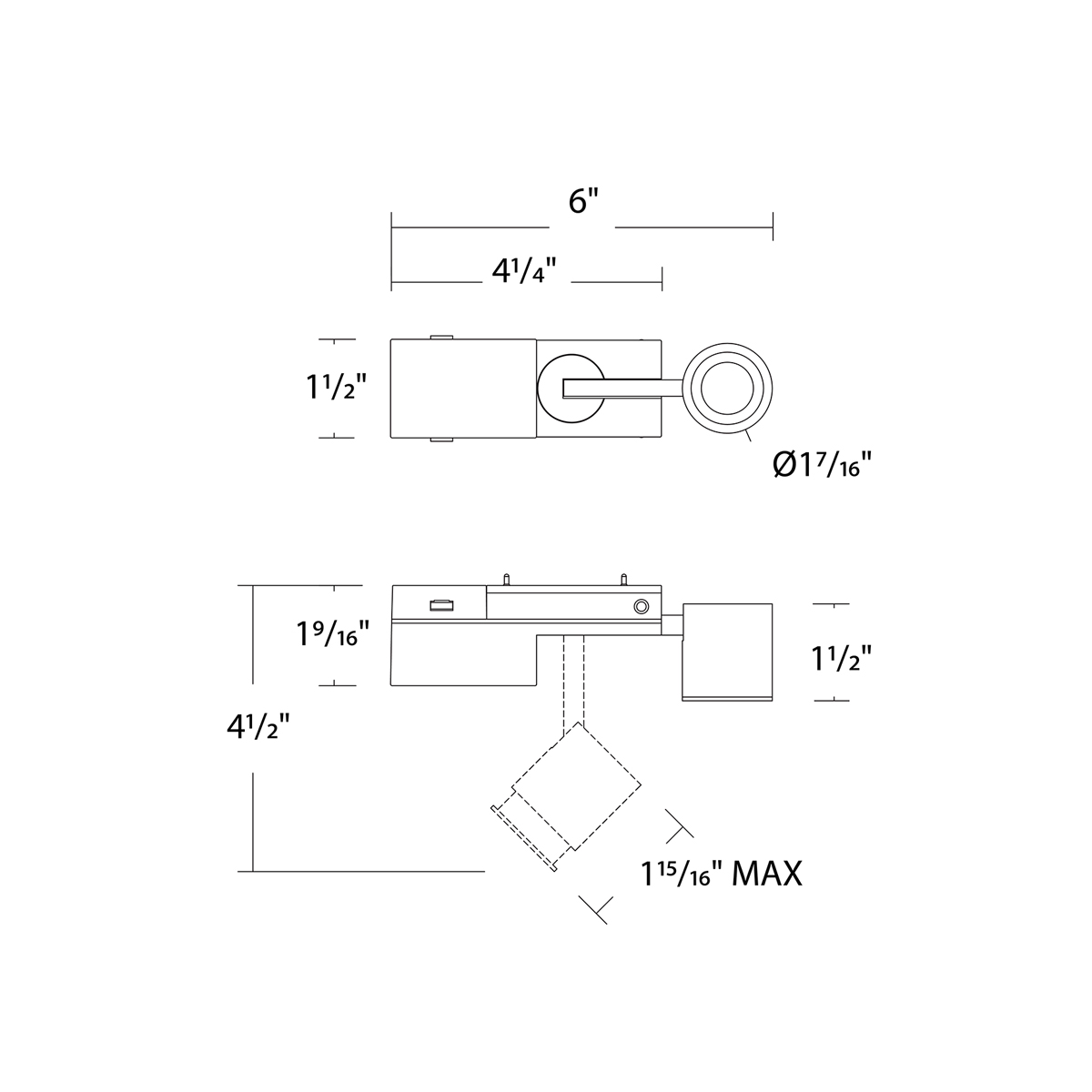

Line Drawing
