Specifications
Order Number:
| model & size | power | watt | beam | color temp & cri | delivered lumens | cbcp | finish |
|---|---|---|---|---|---|---|---|
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKBK - Black/Black |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKCH - Black/Chrome |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKGL - Black/Gold |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKHZ - Black/Haze |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKWT - Black/White |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTBK - White/Black |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTCH - White/Chrome |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTGL - White/Gold |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTHZ - White/Haze |
| S2SCA | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTWT - White/White |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKBK - Black/Black |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKCH - Black/Chrome |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKGL - Black/Gold |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKHZ - Black/Haze |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKWT - Black/White |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTBK - White/Black |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTCH - White/Chrome |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTGL - White/Gold |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTHZ - White/Haze |
| S2SCA | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTWT - White/White |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKBK - Black/Black |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKCH - Black/Chrome |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKGL - Black/Gold |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKHZ - Black/Haze |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKWT - Black/White |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTBK - White/Black |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTCH - White/Chrome |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTGL - White/Gold |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTHZ - White/Haze |
| S2SCB | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTWT - White/White |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKBK - Black/Black |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKCH - Black/Chrome |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKGL - Black/Gold |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKHZ - Black/Haze |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKWT - Black/White |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTBK - White/Black |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTCH - White/Chrome |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTGL - White/Gold |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTHZ - White/Haze |
| S2SCB | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTWT - White/White |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKBK - Black/Black |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKCH - Black/Chrome |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKGL - Black/Gold |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKHZ - Black/Haze |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | BKWT - Black/White |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTBK - White/Black |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTCH - White/Chrome |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTGL - White/Gold |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTHZ - White/Haze |
| S2SCC | 1 | 17W | F - 60° | TWA - 1800-4000K - 90 | 1200 | 1360 | WTWT - White/White |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKBK - Black/Black |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKCH - Black/Chrome |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKGL - Black/Gold |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKHZ - Black/Haze |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | BKWT - Black/White |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTBK - White/Black |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTCH - White/Chrome |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTGL - White/Gold |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTHZ - White/Haze |
| S2SCC | 1 | 17W | N - 40° | TWA - 1800-4000K - 90 | 1140 | 1925 | WTWT - White/White |
Features
- Delivered Lumens: Up to 1200lm
- CBCP: Up to 1925
- CCT: 1800-4000K
- CRI: 90
- Power: 17W
- Input: 48 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- DMX Dimming: 100-0.1%
- Rated Life: 50000 Hours

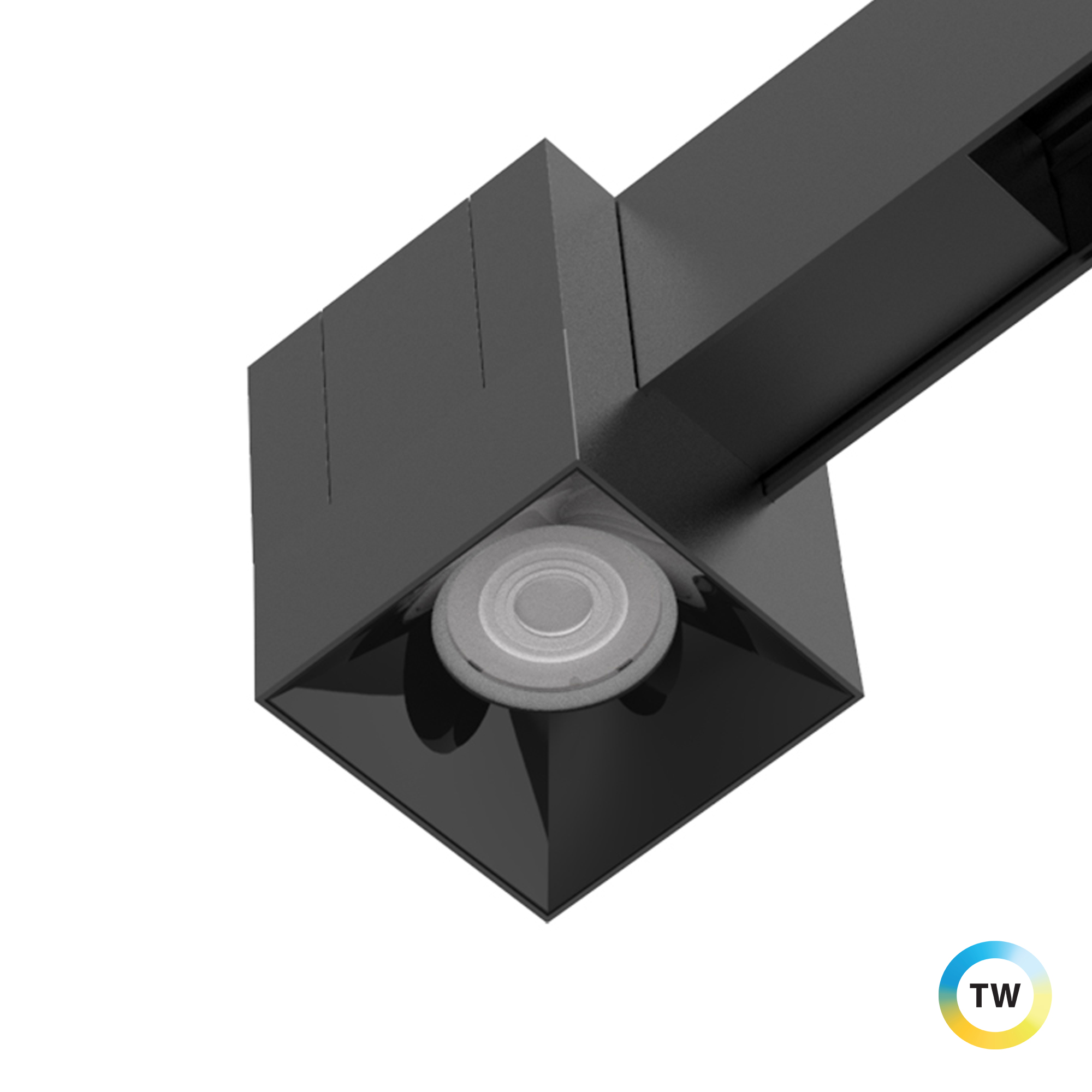

- Construction: Die-cast aluminum with injection molded low glare trim
- Low glare trim with 25° shielding angle

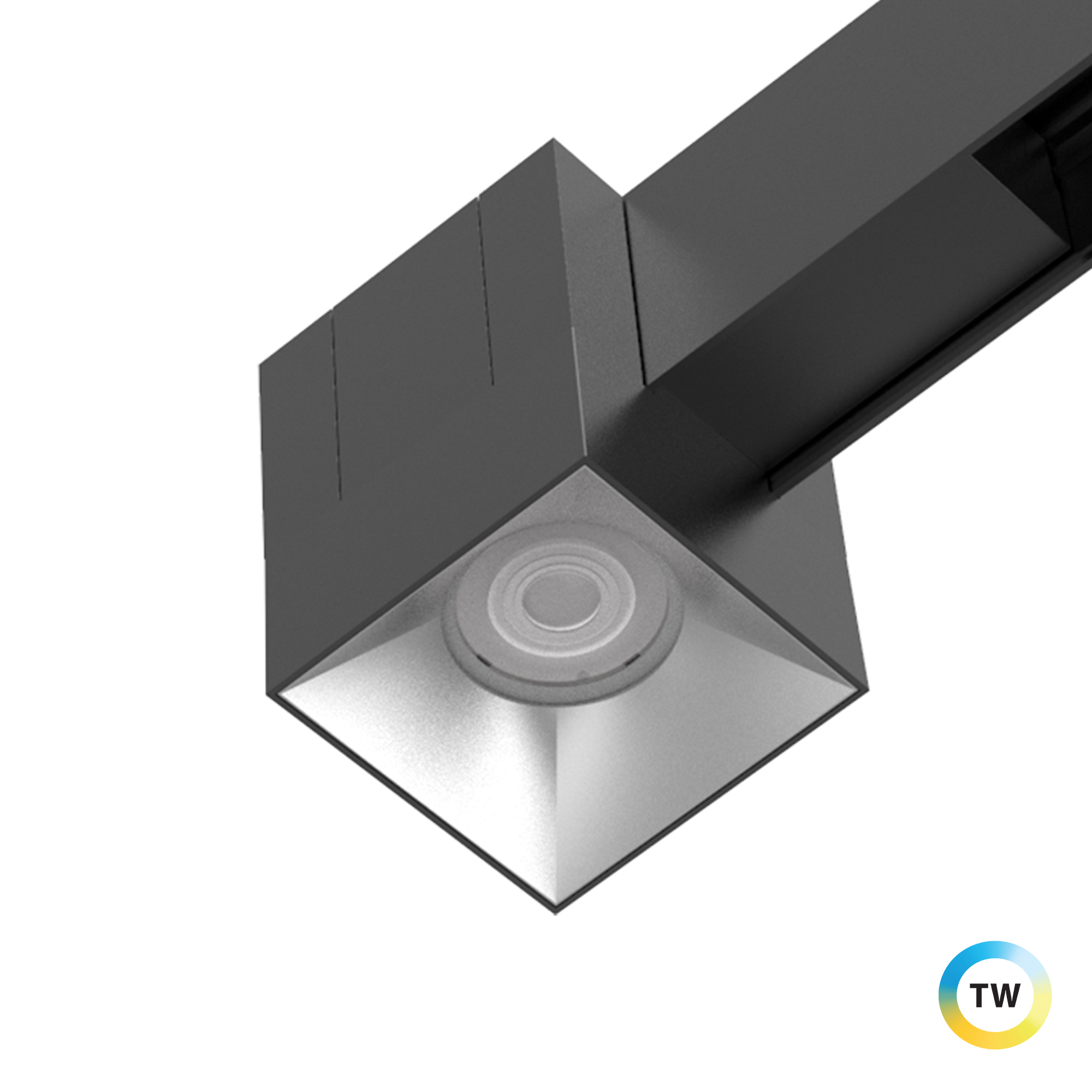

- Interchangeable trim available in 5 finishes

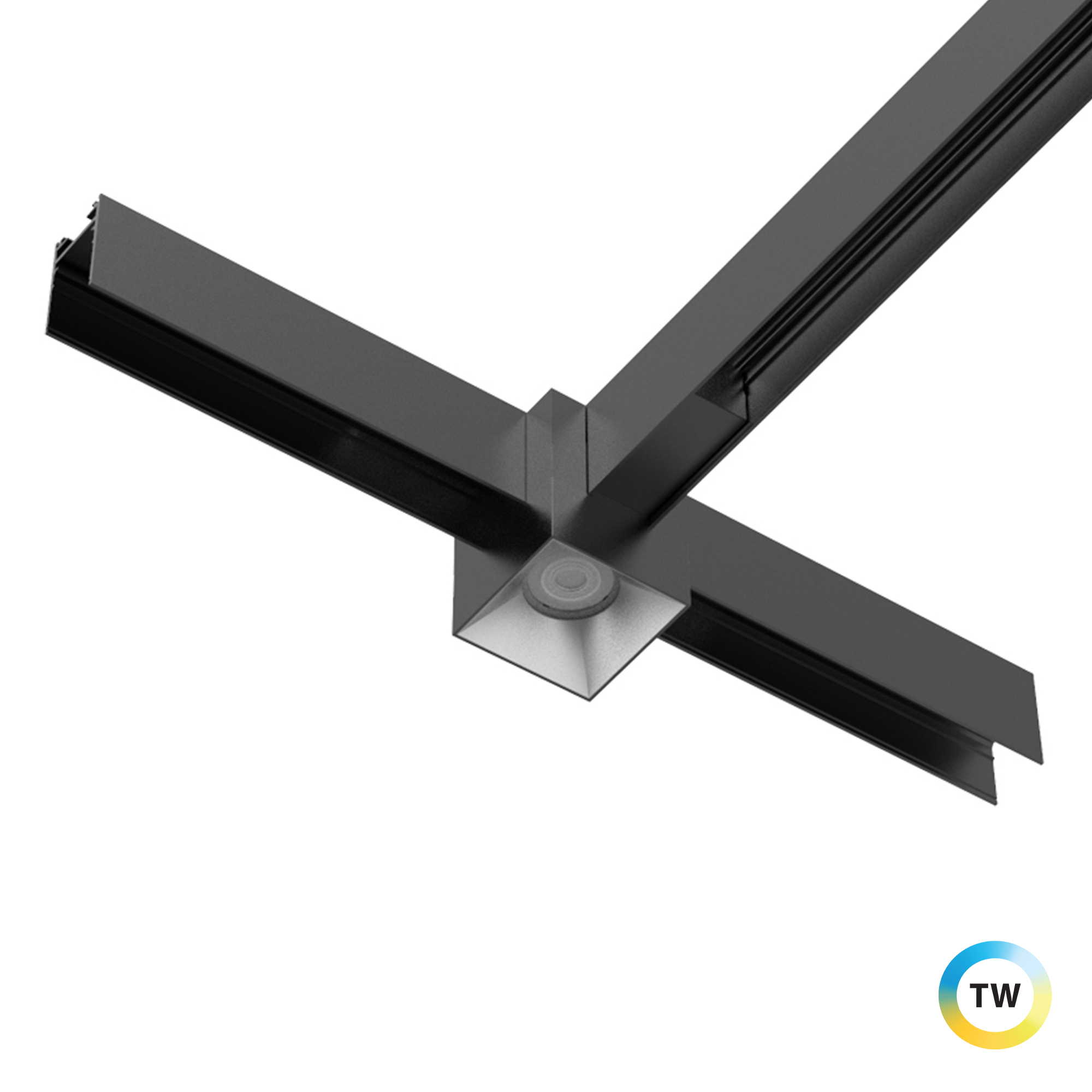

- May be installed side by side or at L, X, T or end of run locations of VENTRIX channel.

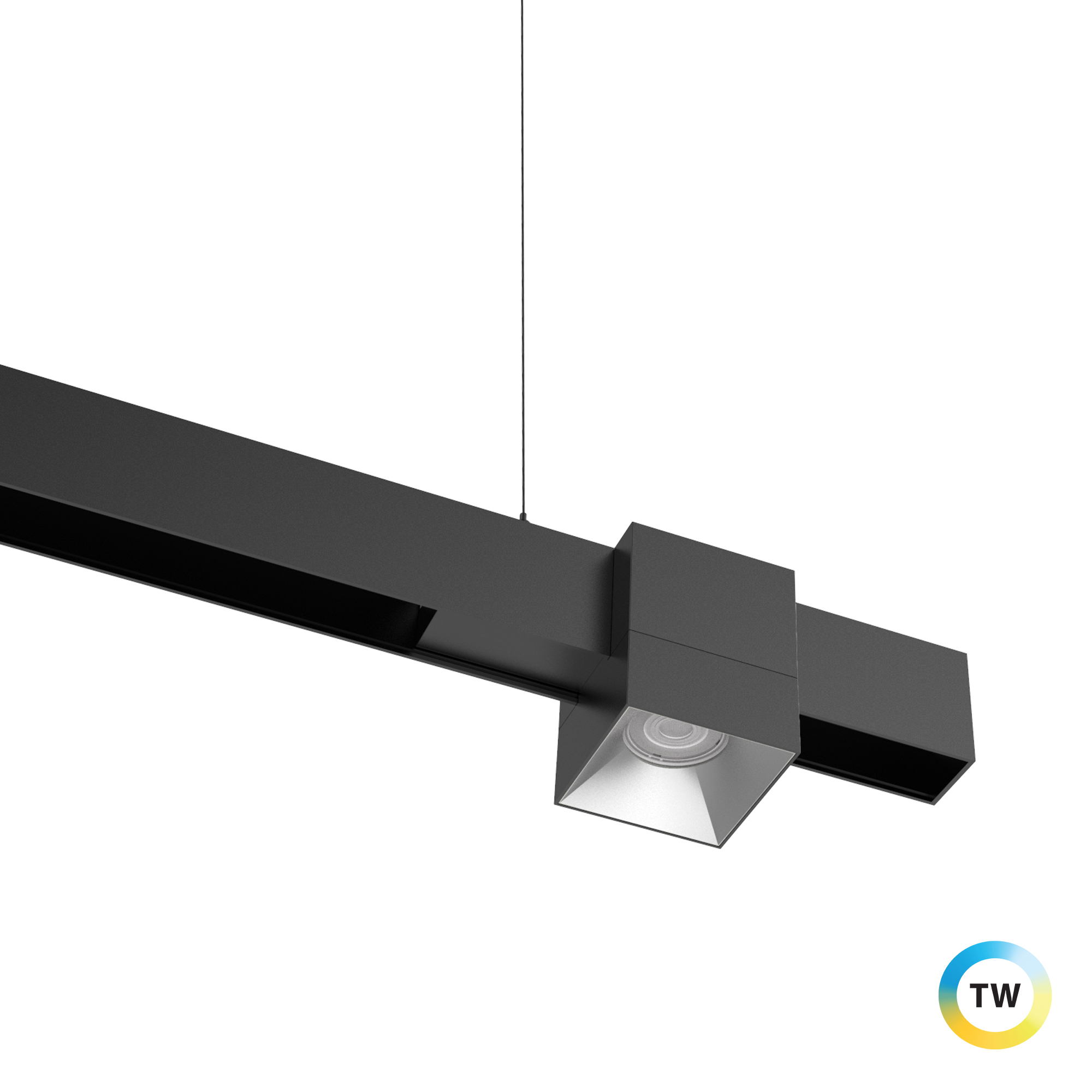

- May be installed in surface, suspended or recessed VENTRIX channel.
- To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space.
- Driver concealed within the fixture
- Can be mounted on ceiling or wall horizontally

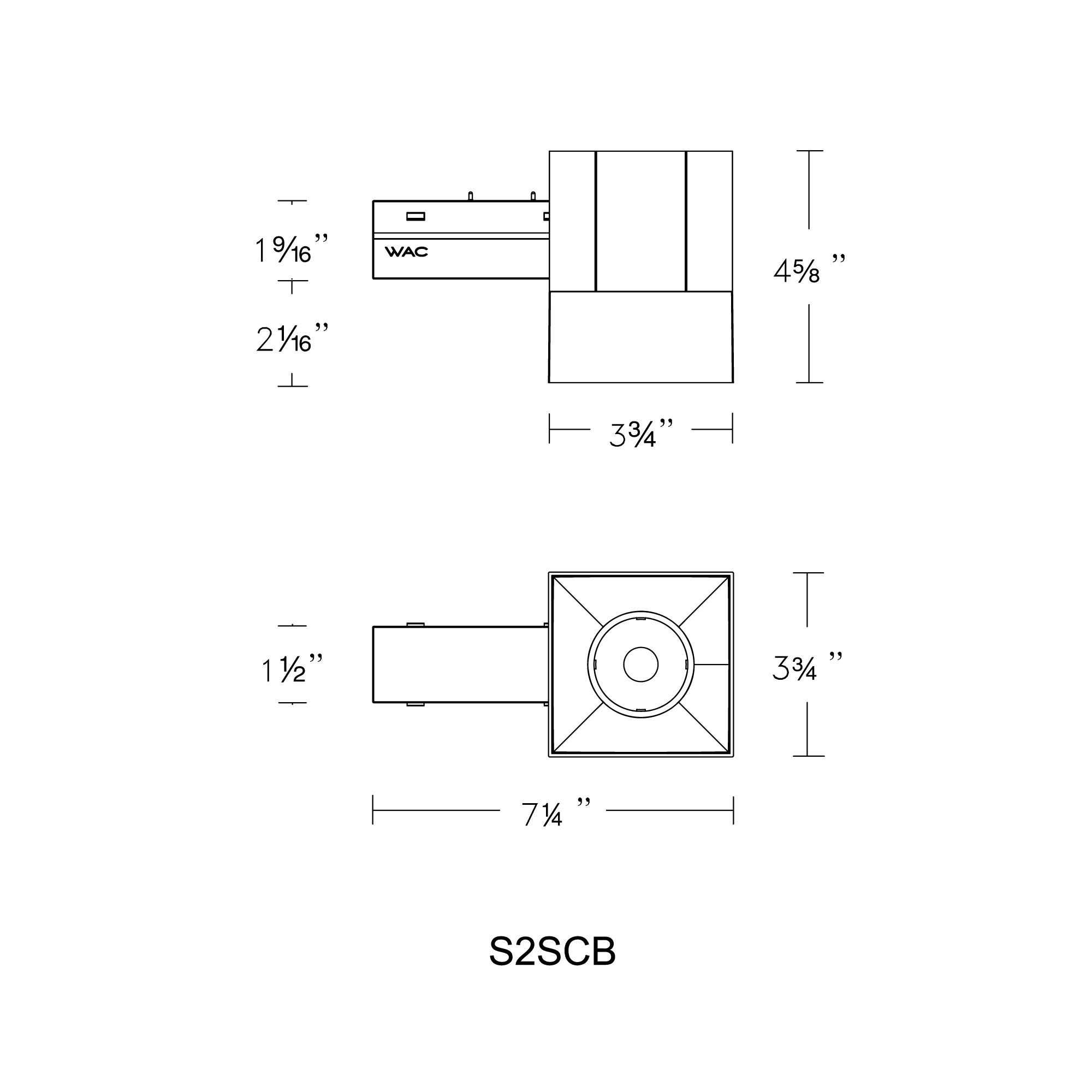

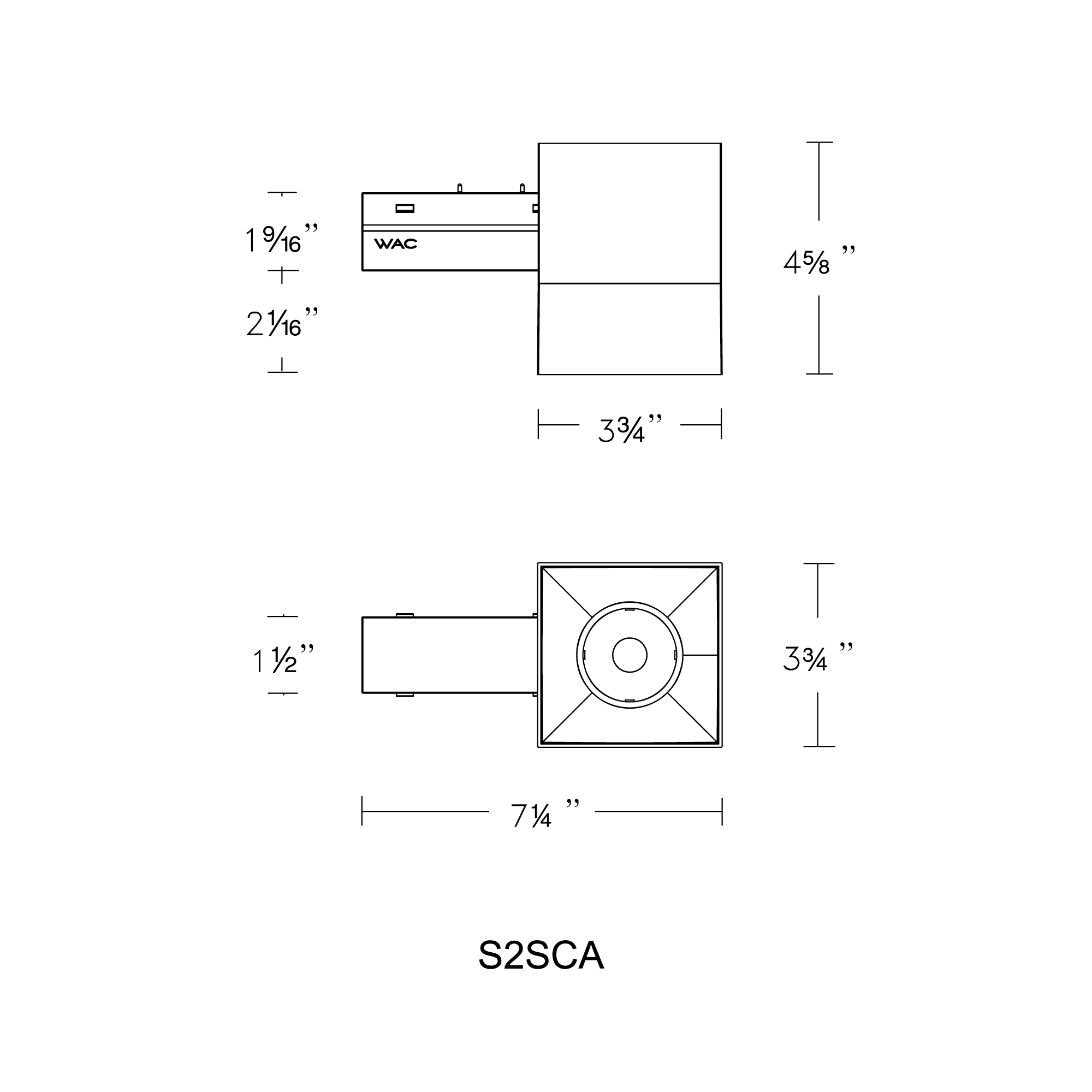

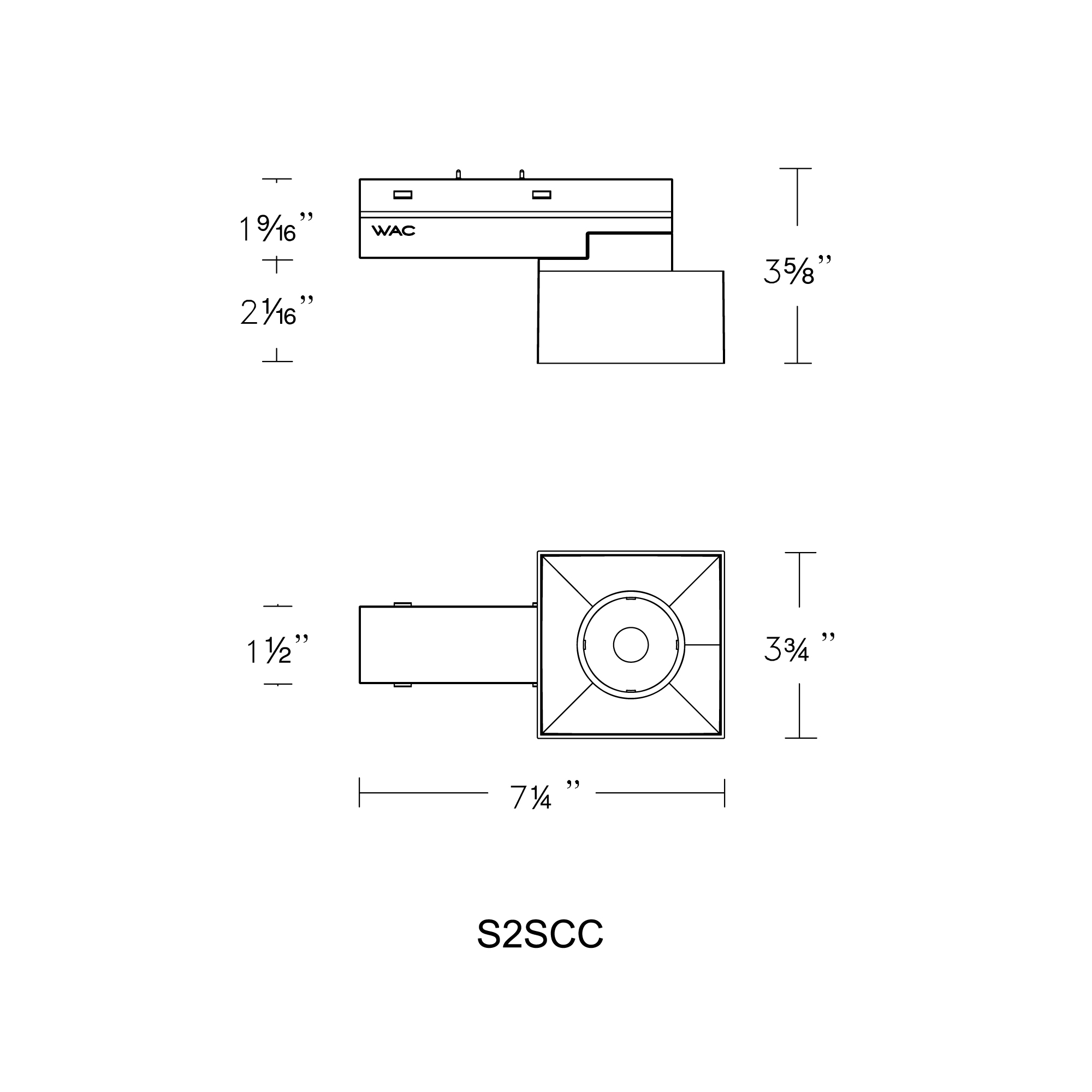

Line Drawing
