Volta 2″ Adjustable Round Trim / Invisible Trim

Specifications

Order Number:

model	beam	color temp & cri	22w / 15w lumens	22w / 15w cbcp	finish
R2RAT	F - 35°	827 - 2700K - 85	893 / 620	2765 / 1921	BK - Black
R2RAT	F - 35°	827 - 2700K - 85	893 / 620	2765 / 1921	BKWT - Black/White
R2RAT	F - 35°	827 - 2700K - 85	893 / 620	2765 / 1921	CB - Copper Bronze
R2RAT	F - 35°	827 - 2700K - 85	893 / 620	2765 / 1921	HZ - Haze
R2RAT	F - 35°	827 - 2700K - 85	893 / 620	2765 / 1921	HZWT - Haze/White
R2RAT	F - 35°	827 - 2700K - 85	893 / 620	2765 / 1921	WT - White
R2RAT	F - 35°	830 - 3000K - 85	940 / 649	2910 / 2008	BK - Black
R2RAT	F - 35°	830 - 3000K - 85	940 / 649	2910 / 2008	BKWT - Black/White
R2RAT	F - 35°	830 - 3000K - 85	940 / 649	2910 / 2008	CB - Copper Bronze
R2RAT	F - 35°	830 - 3000K - 85	940 / 649	2910 / 2008	HZ - Haze
R2RAT	F - 35°	830 - 3000K - 85	940 / 649	2910 / 2008	HZWT - Haze/White
R2RAT	F - 35°	830 - 3000K - 85	940 / 649	2910 / 2008	WT - White
R2RAT	F - 35°	835 - 3500K - 85	987 / 677	3056 / 2095	BK - Black
R2RAT	F - 35°	835 - 3500K - 85	987 / 677	3056 / 2095	BKWT - Black/White
R2RAT	F - 35°	835 - 3500K - 85	987 / 677	3056 / 2095	CB - Copper Bronze
R2RAT	F - 35°	835 - 3500K - 85	987 / 677	3056 / 2095	HZ - Haze
R2RAT	F - 35°	835 - 3500K - 85	987 / 677	3056 / 2095	HZWT - Haze/White
R2RAT	F - 35°	835 - 3500K - 85	987 / 677	3056 / 2095	WT - White
R2RAT	F - 35°	840 - 4000K - 85	1006 / 696	3114 / 2153	BK - Black
R2RAT	F - 35°	840 - 4000K - 85	1006 / 696	3114 / 2153	BKWT - Black/White
R2RAT	F - 35°	840 - 4000K - 85	1006 / 696	3114 / 2153	CB - Copper Bronze
R2RAT	F - 35°	840 - 4000K - 85	1006 / 696	3114 / 2153	HZ - Haze
R2RAT	F - 35°	840 - 4000K - 85	1006 / 696	3114 / 2153	HZWT - Haze/White
R2RAT	F - 35°	840 - 4000K - 85	1006 / 696	3114 / 2153	WT - White
R2RAT	F - 35°	927 - 2700K - 90	761 / 526	2357 / 1630	BK - Black
R2RAT	F - 35°	927 - 2700K - 90	761 / 526	2357 / 1630	BKWT - Black/White
R2RAT	F - 35°	927 - 2700K - 90	761 / 526	2357 / 1630	CB - Copper Bronze
R2RAT	F - 35°	927 - 2700K - 90	761 / 526	2357 / 1630	HZ - Haze
R2RAT	F - 35°	927 - 2700K - 90	761 / 526	2357 / 1630	HZWT - Haze/White
R2RAT	F - 35°	927 - 2700K - 90	761 / 526	2357 / 1630	WT - White
R2RAT	F - 35°	930 - 3000K - 90	761 / 526	2503 / 1717	BK - Black
R2RAT	F - 35°	930 - 3000K - 90	761 / 526	2503 / 1717	BKWT - Black/White
R2RAT	F - 35°	930 - 3000K - 90	761 / 526	2503 / 1717	CB - Copper Bronze
R2RAT	F - 35°	930 - 3000K - 90	761 / 526	2503 / 1717	HZ - Haze
R2RAT	F - 35°	930 - 3000K - 90	761 / 526	2503 / 1717	HZWT - Haze/White
R2RAT	F - 35°	930 - 3000K - 90	761 / 526	2503 / 1717	WT - White
R2RAT	N - 25°	827 - 2700K - 85	869 / 604	5073 / 3524	BK - Black
R2RAT	N - 25°	827 - 2700K - 85	869 / 604	5073 / 3524	BKWT - Black/White
R2RAT	N - 25°	827 - 2700K - 85	869 / 604	5073 / 3524	CB - Copper Bronze
R2RAT	N - 25°	827 - 2700K - 85	869 / 604	5073 / 3524	HZ - Haze
R2RAT	N - 25°	827 - 2700K - 85	869 / 604	5073 / 3524	HZWT - Haze/White
R2RAT	N - 25°	827 - 2700K - 85	869 / 604	5073 / 3524	WT - White
R2RAT	N - 25°	830 - 3000K - 85	915 / 630	5340 / 3685	BK - Black
R2RAT	N - 25°	830 - 3000K - 85	915 / 630	5340 / 3685	BKWT - Black/White
R2RAT	N - 25°	830 - 3000K - 85	915 / 630	5340 / 3685	CB - Copper Bronze
R2RAT	N - 25°	830 - 3000K - 85	915 / 630	5340 / 3685	HZ - Haze
R2RAT	N - 25°	830 - 3000K - 85	915 / 631	5340 / 3685	HZWT - Haze/White
R2RAT	N - 25°	830 - 3000K - 85	915 / 631	5340 / 3685	WT - White
R2RAT	N - 25°	835 - 3500K - 85	961 / 659	5607 / 3845	BK - Black
R2RAT	N - 25°	835 - 3500K - 85	961 / 659	5607 / 3845	BKWT - Black/White
R2RAT	N - 25°	835 - 3500K - 85	961 / 659	5607 / 3845	CB - Copper Bronze
R2RAT	N - 25°	835 - 3500K - 85	961 / 659	5607 / 3845	HZ - Haze
R2RAT	N - 25°	835 - 3500K - 85	961 / 659	5607 / 3845	HZWT - Haze/White
R2RAT	N - 25°	835 - 3500K - 85	961 / 659	5607 / 3845	WT - White
R2RAT	N - 25°	840 - 4000K - 85	979 / 677	5714 / 3952	BK - Black
R2RAT	N - 25°	840 - 4000K - 85	979 / 677	5714 / 3952	BKWT - Black/White
R2RAT	N - 25°	840 - 4000K - 85	979 / 677	5714 / 3952	CB - Copper Bronze
R2RAT	N - 25°	840 - 4000K - 85	979 / 677	5714 / 3952	HZ - Haze
R2RAT	N - 25°	840 - 4000K - 85	979 / 677	5714 / 3952	HZWT - Haze/White
R2RAT	N - 25°	840 - 4000K - 85	979 / 677	5714 / 3952	WT - White
R2RAT	N - 25°	927 - 2700K - 90	741 / 512	4325 / 2990	BK - Black
R2RAT	N - 25°	927 - 2700K - 90	741 / 512	4325 / 2990	BKWT - Black/White
R2RAT	N - 25°	927 - 2700K - 90	741 / 512	4325 / 2990	CB - Copper Bronze
R2RAT	N - 25°	927 - 2700K - 90	741 / 512	4325 / 2990	HZ - Haze
R2RAT	N - 25°	927 - 2700K - 90	741 / 512	4325 / 2990	HZWT - Haze/White
R2RAT	N - 25°	927 - 2700K - 90	741 / 512	4325 / 2990	WT - White
R2RAT	N - 25°	930 - 3000K - 90	787 / 540	4592 / 3151	BK - Black
R2RAT	N - 25°	930 - 3000K - 90	787 / 540	4592 / 3151	BKWT - Black/White
R2RAT	N - 25°	930 - 3000K - 90	787 / 540	4592 / 3151	CB - Copper Bronze
R2RAT	N - 25°	930 - 3000K - 90	787 / 540	4592 / 3151	HZ - Haze
R2RAT	N - 25°	930 - 3000K - 90	787 / 540	4592 / 3151	HZWT - Haze/White
R2RAT	N - 25°	930 - 3000K - 90	787 / 540	4592 / 3151	WT - White
R2RAT	S - 12°	827 - 2700K - 85	318 / 221	4085 / 2838	BK - Black
R2RAT	S - 12°	827 - 2700K - 85	318 / 221	4085 / 2838	BKWT - Black/White
R2RAT	S - 12°	827 - 2700K - 85	318 / 221	4085 / 2838	CB - Copper Bronze
R2RAT	S - 12°	827 - 2700K - 85	318 / 221	4085 / 2838	HZ - Haze
R2RAT	S - 12°	827 - 2700K - 85	318 / 221	4085 / 2838	HZWT - Haze/White
R2RAT	S - 12°	827 - 2700K - 85	318 / 221	4085 / 2838	WT - White
R2RAT	S - 12°	830 - 3000K - 85	335 / 231	4300 / 2967	BK - Black
R2RAT	S - 12°	830 - 3000K - 85	335 / 231	4300 / 2967	BKWT - Black/White
R2RAT	S - 12°	830 - 3000K - 85	335 / 231	4300 / 2967	CB - Copper Bronze
R2RAT	S - 12°	830 - 3000K - 85	335 / 231	4300 / 2967	HZ - Haze
R2RAT	S - 12°	830 - 3000K - 85	335 / 231	4300 / 2967	HZWT - Haze/White
R2RAT	S - 12°	830 - 3000K - 85	335 / 231	4300 / 2967	WT - White
R2RAT	S - 12°	835 - 3500K - 85	352 / 241	4515 / 3096	BK - Black
R2RAT	S - 12°	835 - 3500K - 85	352 / 241	4515 / 3096	BKWT - Black/White
R2RAT	S - 12°	835 - 3500K - 85	352 / 241	4515 / 3096	CB - Copper Bronze
R2RAT	S - 12°	835 - 3500K - 85	352 / 241	4515 / 3096	HZ - Haze
R2RAT	S - 12°	835 - 3500K - 85	352 / 241	4515 / 3096	HZWT - Haze/White
R2RAT	S - 12°	835 - 3500K - 85	352 / 241	4515 / 3096	WT - White
R2RAT	S - 12°	840 - 4000K - 85	358 / 248	4601 / 3182	BK - Black
R2RAT	S - 12°	840 - 4000K - 85	358 / 248	4601 / 3182	BKWT - Black/White
R2RAT	S - 12°	840 - 4000K - 85	358 / 248	4601 / 3182	CB - Copper Bronze
R2RAT	S - 12°	840 - 4000K - 85	358 / 248	4601 / 3182	HZ - Haze
R2RAT	S - 12°	840 - 4000K - 85	358 / 248	4601 / 3182	HZWT - Haze/White
R2RAT	S - 12°	840 - 4000K - 85	358 / 248	4601 / 3182	WT - White
R2RAT	S - 12°	927 - 2700K - 90	271 / 188	3483 / 2408	BK - Black
R2RAT	S - 12°	927 - 2700K - 90	271 / 188	3483 / 2408	BKWT - Black/White
R2RAT	S - 12°	927 - 2700K - 90	271 / 188	3483 / 2408	CB - Copper Bronze
R2RAT	S - 12°	927 - 2700K - 90	271 / 188	3483 / 2408	HZ - Haze
R2RAT	S - 12°	927 - 2700K - 90	271 / 188	3483 / 2408	HZWT - Haze/White
R2RAT	S - 12°	927 - 2700K - 90	271 / 188	3483 / 2408	WT - White
R2RAT	S - 12°	930 - 3000K - 90	288 / 198	3698 / 2537	BK - Black
R2RAT	S - 12°	930 - 3000K - 90	288 / 198	3698 / 2537	BKWT - Black/White
R2RAT	S - 12°	930 - 3000K - 90	288 / 198	3698 / 2537	CB - Copper Bronze
R2RAT	S - 12°	930 - 3000K - 90	288 / 198	3698 / 2537	HZ - Haze
R2RAT	S - 12°	930 - 3000K - 90	288 / 198	3698 / 2537	HZWT - Haze/White
R2RAT	S - 12°	930 - 3000K - 90	288 / 198	3698 / 2537	WT - White

Features

Delivered Lumens: Up to 1006lm
CBCP: Up to 5714
CCT: 2700K, 3000K, 3500K, 4000K
CRI: Up to 90
Power: 10W, 15W, 22W
Rated Life: 50000 Hours
Construction: Durable die-cast self-flanged aluminum construction
Center beam alignment retained throughout adjustment range
0-45° vertical and 365° horizontal lockable hot aiming
Indexed vertical scaling for precise and accurate alignment
Integral patterned tempered trim lens included standard
Compatible with a wide range of accessories

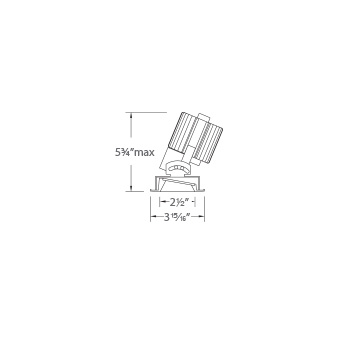

Line Drawing

WACLighting.com Line Drawing

Components

Volta 2"
Remodel Housing

Volta 2"
New Construction Housing Trim Round

Volta 2"
New Construction Housing Invisible Trim Round

Volta 2"
Remodel Housing Invisible Trim Round

Accessories

Volta 2"
Accessory Holder

Honeycomb Louver
Accessory

Cross Louver
Accessory

Colored Lens
Accessory
