Specifications
Order Number:
| model | beam | color temp & cri | 22w / 15w lumens | 22w / 15w cbcp | finish |
|---|---|---|---|---|---|
| R2SPT | N - 20° | 827 - 2700K - 85 | 684 / 475 | 5073 / 3524 | BK - Black |
| R2SPT | N - 20° | 827 - 2700K - 85 | 684 / 475 | 5073 / 3524 | CB - Copper Bronze |
| R2SPT | N - 20° | 827 - 2700K - 85 | 684 / 475 | 5073 / 3524 | HZ - Haze |
| R2SPT | N - 20° | 827 - 2700K - 85 | 684 / 475 | 5073 / 3524 | WT - White |
| R2SPT | N - 20° | 830 - 3000K - 85 | 720 / 497 | 5340 / 3685 | BK - Black |
| R2SPT | N - 20° | 830 - 3000K - 85 | 720 / 497 | 5340 / 3685 | CB - Copper Bronze |
| R2SPT | N - 20° | 830 - 3000K - 85 | 720 / 497 | 5340 / 3685 | HZ - Haze |
| R2SPT | N - 20° | 830 - 3000K - 85 | 720 / 497 | 5340 / 3685 | WT - White |
| R2SPT | N - 20° | 835 - 3500K - 85 | 756 / 518 | 5607 / 3845 | BK - Black |
| R2SPT | N - 20° | 835 - 3500K - 85 | 756 / 518 | 5607 / 3845 | CB - Copper Bronze |
| R2SPT | N - 20° | 835 - 3500K - 85 | 756 / 518 | 5607 / 3845 | HZ - Haze |
| R2SPT | N - 20° | 835 - 3500K - 85 | 756 / 518 | 5607 / 3845 | WT - White |
| R2SPT | N - 20° | 840 - 4000K - 85 | 770 / 533 | 5714 / 3952 | BK - Black |
| R2SPT | N - 20° | 840 - 4000K - 85 | 770 / 533 | 5714 / 3952 | CB - Copper Bronze |
| R2SPT | N - 20° | 840 - 4000K - 85 | 770 / 533 | 5714 / 3952 | HZ - Haze |
| R2SPT | N - 20° | 840 - 4000K - 85 | 770 / 533 | 5714 / 3952 | WT - White |
| R2SPT | N - 20° | 927 - 2700K - 90 | 583 / 403 | 4325 / 2990 | BK - Black |
| R2SPT | N - 20° | 927 - 2700K - 90 | 583 / 403 | 4325 / 2990 | CB - Copper Bronze |
| R2SPT | N - 20° | 927 - 2700K - 90 | 583 / 403 | 4325 / 2990 | HZ - Haze |
| R2SPT | N - 20° | 927 - 2700K - 90 | 583 / 403 | 4325 / 2990 | WT - White |
| R2SPT | N - 20° | 930 - 3000K - 90 | 619 / 425 | 4592 / 3151 | BK - Black |
| R2SPT | N - 20° | 930 - 3000K - 90 | 619 / 425 | 4592 / 3151 | CB - Copper Bronze |
| R2SPT | N - 20° | 930 - 3000K - 90 | 619 / 425 | 4592 / 3151 | HZ - Haze |
| R2SPT | N - 20° | 930 - 3000K - 90 | 619 / 425 | 4592 / 3151 | WT - White |
| R2SPT | S - 12° | 827 - 2700K - 85 | 271 / 188 | 4541 / 3155 | BK - Black |
| R2SPT | S - 12° | 827 - 2700K - 85 | 271 / 188 | 4541 / 3155 | CB - Copper Bronze |
| R2SPT | S - 12° | 827 - 2700K - 85 | 271 / 188 | 4541 / 3155 | HZ - Haze |
| R2SPT | S - 12° | 827 - 2700K - 85 | 271 / 188 | 4541 / 3155 | WT - White |
| R2SPT | S - 12° | 830 - 3000K - 85 | 285 / 197 | 4780 / 3298 | BK - Black |
| R2SPT | S - 12° | 830 - 3000K - 85 | 285 / 197 | 4780 / 3298 | CB - Copper Bronze |
| R2SPT | S - 12° | 830 - 3000K - 85 | 285 / 197 | 4780 / 3298 | HZ - Haze |
| R2SPT | S - 12° | 830 - 3000K - 85 | 285 / 197 | 4780 / 3298 | WT - White |
| R2SPT | S - 12° | 835 - 3500K - 85 | 299 / 205 | 5019 / 3442 | BK - Black |
| R2SPT | S - 12° | 835 - 3500K - 85 | 299 / 205 | 5019 / 3442 | CB - Copper Bronze |
| R2SPT | S - 12° | 835 - 3500K - 85 | 299 / 205 | 5019 / 3442 | HZ - Haze |
| R2SPT | S - 12° | 835 - 3500K - 85 | 299 / 205 | 5019 / 3442 | WT - White |
| R2SPT | S - 12° | 840 - 4000K - 85 | 305 / 211 | 5115 / 3537 | BK - Black |
| R2SPT | S - 12° | 840 - 4000K - 85 | 305 / 211 | 5115 / 3537 | CB - Copper Bronze |
| R2SPT | S - 12° | 840 - 4000K - 85 | 305 / 211 | 5115 / 3537 | HZ - Haze |
| R2SPT | S - 12° | 840 - 4000K - 85 | 305 / 211 | 5115 / 3537 | WT - White |
| R2SPT | S - 12° | 927 - 2700K - 90 | 231 / 160 | 3872 / 2677 | BK - Black |
| R2SPT | S - 12° | 927 - 2700K - 90 | 231 / 160 | 3872 / 2677 | CB - Copper Bronze |
| R2SPT | S - 12° | 927 - 2700K - 90 | 231 / 160 | 3872 / 2677 | HZ - Haze |
| R2SPT | S - 12° | 927 - 2700K - 90 | 231 / 160 | 3872 / 2677 | WT - White |
| R2SPT | S - 12° | 930 - 3000K - 90 | 245 / 168 | 4111 / 2820 | BK - Black |
| R2SPT | S - 12° | 930 - 3000K - 90 | 245 / 168 | 4111 / 2820 | CB - Copper Bronze |
| R2SPT | S - 12° | 930 - 3000K - 90 | 245 / 168 | 4111 / 2820 | HZ - Haze |
| R2SPT | S - 12° | 930 - 3000K - 90 | 245 / 168 | 4111 / 2820 | WT - White |
Features
- Delivered Lumens: Up to 770lm
- CBCP: Up to 5714
- CCT: 2700K, 3000K, 3500K, 4000K
- CRI: Up to 90
- Power: 10W, 15W, 22W
- Rated Life: 50000 Hours
- Construction: Durable die-cast self-flanged aluminum construction
- Center beam alignment retained throughout adjustment range
- 0-30° vertical and 365° horizontal lockable hot aiming
- Indexed vertical scaling for precise and accurate alignment
- Integral patterned tempered trim lens included standard
- Compatible with a wide range of accessories

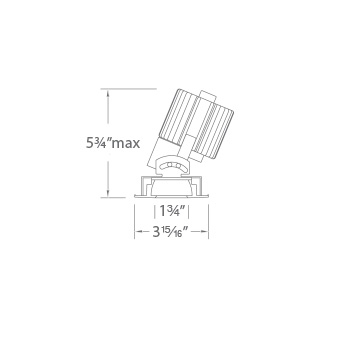

Line Drawing
