Volta 2″ Pinhole Adjustable Round Trim / Invisible Trim

Specifications

Order Number:

model	beam	color temp & cri	22w / 15w lumens	22w / 15w cbcp	finish
R2RPT	N - 20°	827 - 2700K - 85	527 / 366	4565 / 3171	BK - Black
R2RPT	N - 20°	827 - 2700K - 85	527 / 366	4565 / 3171	CB - Copper Bronze
R2RPT	N - 20°	827 - 2700K - 85	527 / 366	4565 / 3171	HZ - Haze
R2RPT	N - 20°	827 - 2700K - 85	527 / 366	4565 / 3171	WT - White
R2RPT	N - 20°	830 - 3000K - 85	555 / 383	4805 / 3315	BK - Black
R2RPT	N - 20°	830 - 3000K - 85	555 / 383	4805 / 3315	CB - Copper Bronze
R2RPT	N - 20°	830 - 3000K - 85	555 / 383	4805 / 3315	HZ - Haze
R2RPT	N - 20°	830 - 3000K - 85	555 / 383	4805 / 3315	WT - White
R2RPT	N - 20°	835 - 3500K - 85	583 / 400	5045 / 3460	BK - Black
R2RPT	N - 20°	835 - 3500K - 85	583 / 400	5045 / 3460	CB - Copper Bronze
R2RPT	N - 20°	835 - 3500K - 85	583 / 400	5045 / 3460	HZ - Haze
R2RPT	N - 20°	835 - 3500K - 85	583 / 400	5045 / 3460	WT - White
R2RPT	N - 20°	840 - 4000K - 85	594 / 411	5141 / 3556	BK - Black
R2RPT	N - 20°	840 - 4000K - 85	594 / 411	5141 / 3556	CB - Copper Bronze
R2RPT	N - 20°	840 - 4000K - 85	594 / 411	5141 / 3556	HZ - Haze
R2RPT	N - 20°	840 - 4000K - 85	594 / 411	5141 / 3556	WT - White
R2RPT	N - 20°	927 - 2700K - 90	450 / 311	3892 / 2691	BK - Black
R2RPT	N - 20°	927 - 2700K - 90	450 / 311	3892 / 2691	CB - Copper Bronze
R2RPT	N - 20°	927 - 2700K - 90	450 / 311	3892 / 2691	HZ - Haze
R2RPT	N - 20°	927 - 2700K - 90	450 / 311	3892 / 2691	WT - White
R2RPT	N - 20°	930 - 3000K - 90	477 / 327	4132 / 2835	BK - Black
R2RPT	N - 20°	930 - 3000K - 90	477 / 327	4132 / 2835	CB - Copper Bronze
R2RPT	N - 20°	930 - 3000K - 90	477 / 327	4132 / 2835	HZ - Haze
R2RPT	N - 20°	930 - 3000K - 90	477 / 327	4132 / 2835	WT - White
R2RPT	S - 12°	827 - 2700K - 85	223 / 155	3211 / 2231	BK - Black
R2RPT	S - 12°	827 - 2700K - 85	223 / 155	3211 / 2231	CB - Copper Bronze
R2RPT	S - 12°	827 - 2700K - 85	223 / 155	3211 / 2231	HZ - Haze
R2RPT	S - 12°	827 - 2700K - 85	223 / 155	3211 / 2231	WT - White
R2RPT	S - 12°	830 - 3000K - 85	235 / 162	3380 / 2332	BK - Black
R2RPT	S - 12°	830 - 3000K - 85	235 / 162	3380 / 2332	CB - Copper Bronze
R2RPT	S - 12°	830 - 3000K - 85	235 / 162	3380 / 2332	HZ - Haze
R2RPT	S - 12°	830 - 3000K - 85	235 / 162	3380 / 2332	WT - White
R2RPT	S - 12°	835 - 3500K - 85	247 / 169	3549 / 2434	BK - Black
R2RPT	S - 12°	835 - 3500K - 85	247 / 169	3549 / 2434	CB - Copper Bronze
R2RPT	S - 12°	835 - 3500K - 85	247 / 169	3549 / 2434	HZ - Haze
R2RPT	S - 12°	835 - 3500K - 85	247 / 169	3549 / 2434	WT - White
R2RPT	S - 12°	840 - 4000K - 85	251 / 174	3617 / 2501	BK - Black
R2RPT	S - 12°	840 - 4000K - 85	251 / 174	3617 / 2501	CB - Copper Bronze
R2RPT	S - 12°	840 - 4000K - 85	251 / 174	3617 / 2501	HZ - Haze
R2RPT	S - 12°	840 - 4000K - 85	251 / 174	3617 / 2501	WT - White
R2RPT	S - 12°	927 - 2700K - 90	190 / 132	2738 / 1893	BK - Black
R2RPT	S - 12°	927 - 2700K - 90	190 / 132	2738 / 1893	CB - Copper Bronze
R2RPT	S - 12°	927 - 2700K - 90	190 / 132	2738 / 1893	HZ - Haze
R2RPT	S - 12°	927 - 2700K - 90	190 / 132	2738 / 1893	WT - White
R2RPT	S - 12°	930 - 3000K - 90	202 / 139	2907 / 1994	BK - Black
R2RPT	S - 12°	930 - 3000K - 90	202 / 139	2907 / 1994	CB - Copper Bronze
R2RPT	S - 12°	930 - 3000K - 90	202 / 139	2907 / 1994	HZ - Haze
R2RPT	S - 12°	930 - 3000K - 90	202 / 139	2907 / 1994	WT - White

Features

Delivered Lumens: Up to 594lm
CBCP: Up to 5141
CCT: 2700K, 3000K, 3500K, 4000K
CRI: Up to 90
Power: 10W, 15W, 22W
Rated Life: 50000 Hours
Construction: Durable die-cast self-flanged aluminum construction
Center beam alignment retained throughout adjustment range
0-30° vertical and 365° horizontal lockable hot aiming
Indexed vertical scaling for precise and accurate alignment
Integral patterned tempered trim lens included standard
Compatible with a wide range of accessories

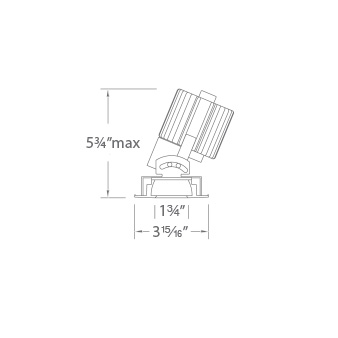

Line Drawing

WACLighting.com Line Drawing

Components

Volta 2"
Remodel Housing

Volta 2"
New Construction Housing Trim Round

Volta 2"
New Construction Housing Invisible Trim Round

Volta 2"
Remodel Housing Invisible Trim Round

Accessories

Volta 2"
Accessory Holder

Honeycomb Louver
Accessory

Cross Louver
Accessory

Colored Lens
Accessory
