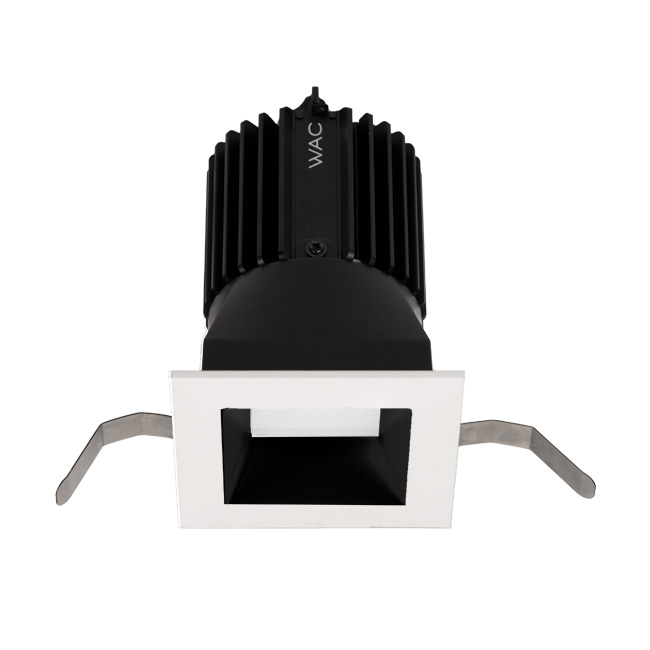

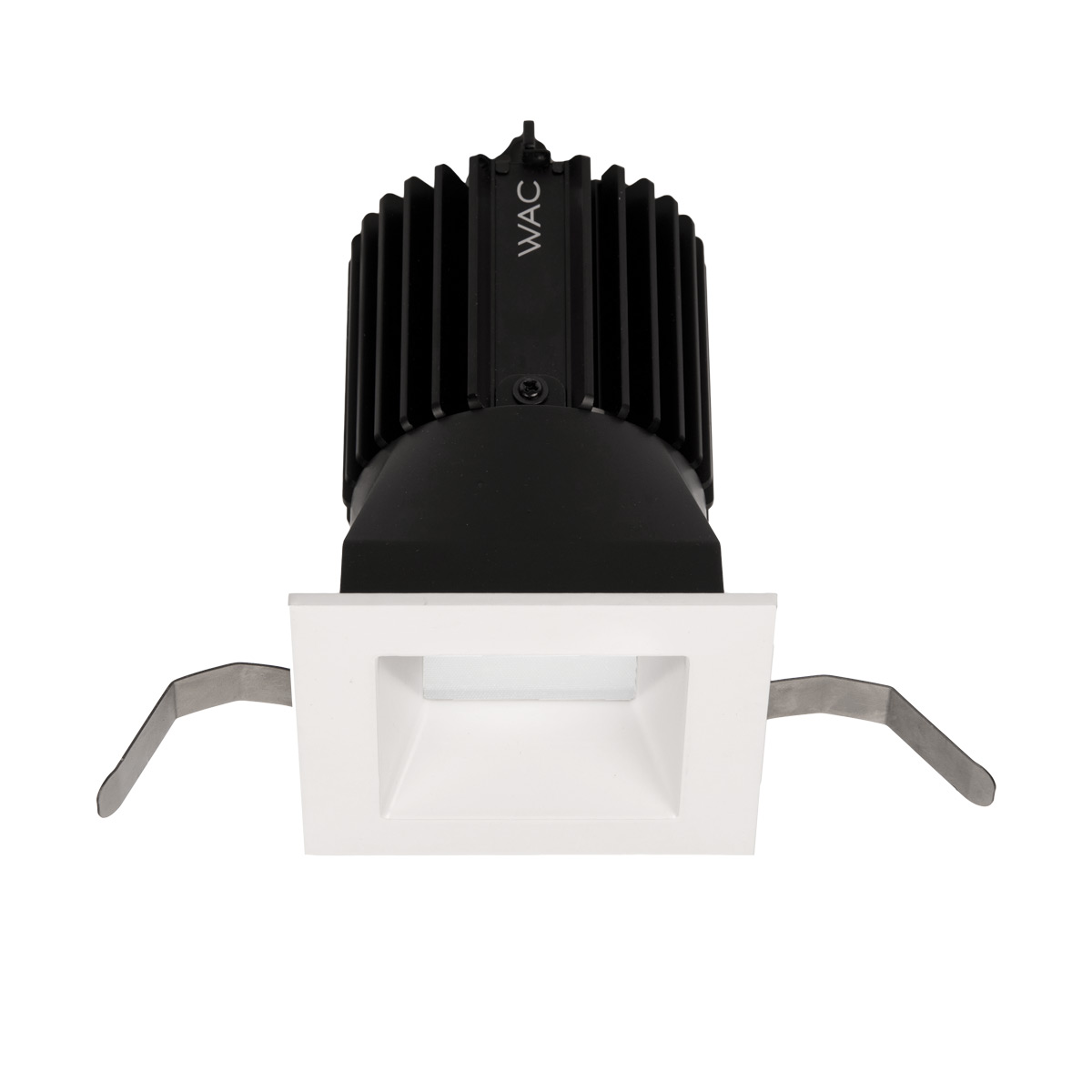

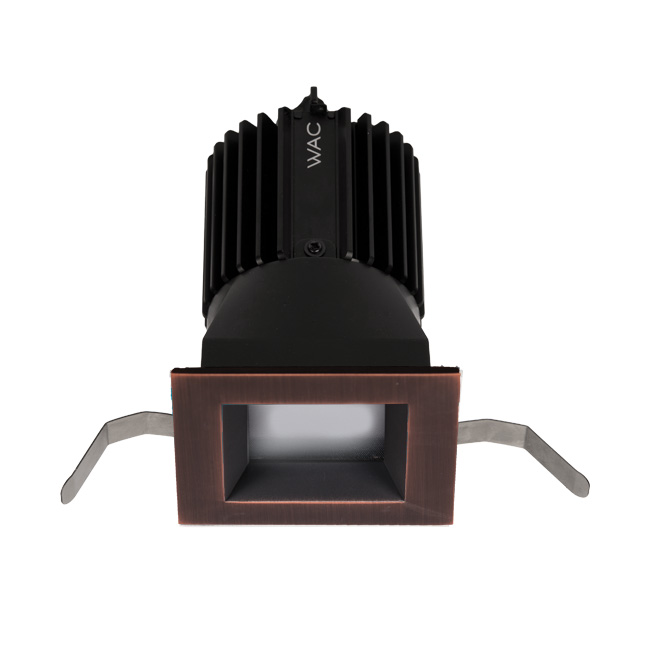

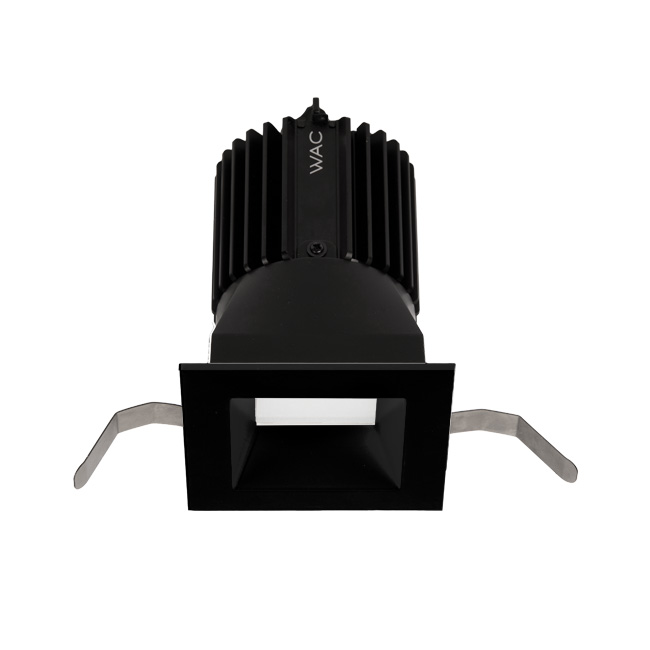

Volta 2″ Tunable White Downlight Square Trim / Invisible Trim

NEW

NEW

Specifications

Order Number:

model	beam	color temp & cri	22w / 15w lumens	22w / 15w cbcp	finish
R2SD2T	F - 35°	TWA - 1800K-4000K - 98	615 / 770	1645 / 2160	BK - Black
R2SD2T	F - 35°	TWA - 1800K-4000K - 98	615 / 770	1645 / 2160	BKWT - Black/White
R2SD2T	F - 35°	TWA - 1800K-4000K - 98	615 / 770	1645 / 2160	CB - Copper Bronze
R2SD2T	F - 35°	TWA - 1800K-4000K - 98	615 / 770	1645 / 2160	HZ - Haze
R2SD2T	F - 35°	TWA - 1800K-4000K - 98	615 / 770	1645 / 2160	HZWT - Haze/White
R2SD2T	F - 35°	TWA - 1800K-4000K - 98	615 / 770	1645 / 2160	WT - White
R2SD2T	F - 35°	TWB - 2700K-6500K - 98	635 / 930	1785 / 2585	BK - Black
R2SD2T	F - 35°	TWB - 2700K-6500K - 98	635 / 930	1785 / 2585	BKWT - Black/White
R2SD2T	F - 35°	TWB - 2700K-6500K - 98	635 / 930	1785 / 2585	CB - Copper Bronze
R2SD2T	F - 35°	TWB - 2700K-6500K - 98	635 / 930	1785 / 2585	HZ - Haze
R2SD2T	F - 35°	TWB - 2700K-6500K - 98	635 / 930	1785 / 2585	HZWT - Haze/White
R2SD2T	F - 35°	TWB - 2700K-6500K - 98	635 / 930	1785 / 2585	WT - White
R2SD2T	N - 25°	TWA - 1800K-4000K - 98	645 / 800	2625 / 3465	BK - Black
R2SD2T	N - 25°	TWA - 1800K-4000K - 98	645 / 800	2625 / 3465	BKWT - Black/White
R2SD2T	N - 25°	TWA - 1800K-4000K - 98	645 / 800	2625 / 3465	CB - Copper Bronze
R2SD2T	N - 25°	TWA - 1800K-4000K - 98	645 / 800	2625 / 3465	HZ - Haze
R2SD2T	N - 25°	TWA - 1800K-4000K - 98	645 / 800	2625 / 3465	HZWT - Haze/White
R2SD2T	N - 25°	TWA - 1800K-4000K - 98	645 / 800	2625 / 3465	WT - White
R2SD2T	N - 25°	TWB - 2700K-6500K - 98	545 / 815	2350 / 3535	BK - Black
R2SD2T	N - 25°	TWB - 2700K-6500K - 98	545 / 815	2350 / 3535	BKWT - Black/White
R2SD2T	N - 25°	TWB - 2700K-6500K - 98	545 / 815	2350 / 3535	CB - Copper Bronze
R2SD2T	N - 25°	TWB - 2700K-6500K - 98	545 / 815	2350 / 3535	HZ - Haze
R2SD2T	N - 25°	TWB - 2700K-6500K - 98	545 / 815	2350 / 3535	HZWT - Haze/White
R2SD2T	N - 25°	TWB - 2700K-6500K - 98	545 / 815	2350 / 3535	WT - White
R2SD2T	W - 45°	TWA - 1800K-4000K - 98	535 / 750	1075 / 1535	BK - Black
R2SD2T	W - 45°	TWA - 1800K-4000K - 98	535 / 750	1075 / 1535	BKWT - Black/White
R2SD2T	W - 45°	TWA - 1800K-4000K - 98	535 / 750	1075 / 1535	CB - Copper Bronze
R2SD2T	W - 45°	TWA - 1800K-4000K - 98	535 / 750	1075 / 1535	HZ - Haze
R2SD2T	W - 45°	TWA - 1800K-4000K - 98	535 / 750	1075 / 1535	HZWT - Haze/White
R2SD2T	W - 45°	TWA - 1800K-4000K - 98	535 / 750	1075 / 1535	WT - White
R2SD2T	W - 45°	TWB - 2700K-6500K - 98	540 / 795	1130 / 1675	BK - Black
R2SD2T	W - 45°	TWB - 2700K-6500K - 98	540 / 795	1130 / 1675	BKWT - Black/White
R2SD2T	W - 45°	TWB - 2700K-6500K - 98	540 / 795	1130 / 1675	CB - Copper Bronze
R2SD2T	W - 45°	TWB - 2700K-6500K - 98	540 / 795	1130 / 1675	HZ - Haze
R2SD2T	W - 45°	TWB - 2700K-6500K - 98	540 / 795	1130 / 1675	HZWT - Haze/White
R2SD2T	W - 45°	TWB - 2700K-6500K - 98	540 / 795	1130 / 1675	WT - White
