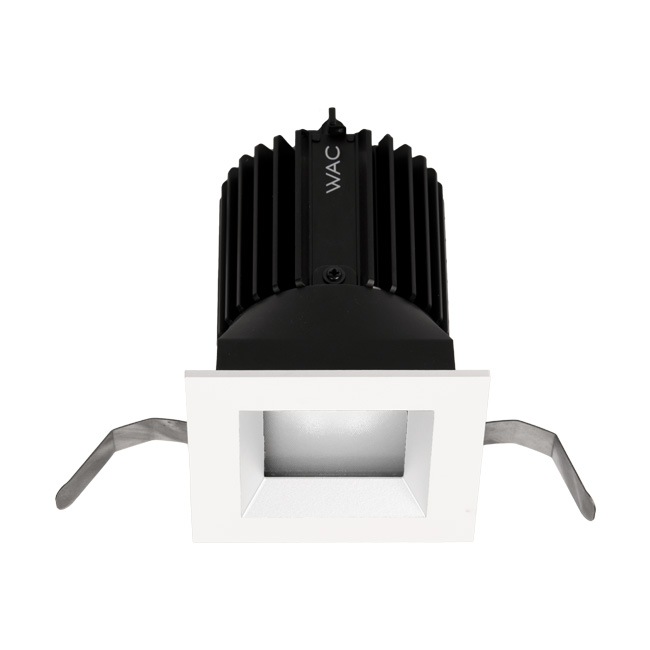

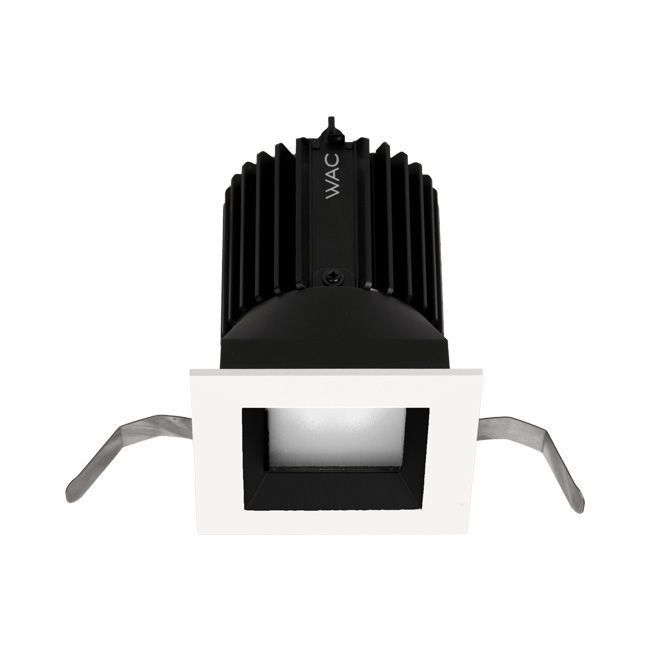

Volta 2″ Tunable White Shallow Regressed Square Trim / Invisible Trim

NEW

NEW

Specifications

Order Number:

model	beam	color temp & cri	22w / 15w lumens	22w / 15w cbcp	finish
R2SD1T	F - 35°	TWA - 1800K-4000K - 98	795 / 1085	1735 / 2365	BK - Black
R2SD1T	F - 35°	TWA - 1800K-4000K - 98	795 / 1085	1735 / 2365	BKWT - Black/White
R2SD1T	F - 35°	TWA - 1800K-4000K - 98	795 / 1085	1735 / 2365	CB - Copper Bronze
R2SD1T	F - 35°	TWA - 1800K-4000K - 98	795 / 1085	1735 / 2365	HZ - Haze
R2SD1T	F - 35°	TWA - 1800K-4000K - 98	795 / 1085	1735 / 2365	HZWT - Haze/White
R2SD1T	F - 35°	TWA - 1800K-4000K - 98	795 / 1085	1735 / 2365	WT - White
R2SD1T	F - 35°	TWB - 2700K-6500K - 98	780 / 1150	2125 / 3105	BK - Black
R2SD1T	F - 35°	TWB - 2700K-6500K - 98	780 / 1150	2125 / 3105	BKWT - Black/White
R2SD1T	F - 35°	TWB - 2700K-6500K - 98	780 / 1150	2125 / 3105	CB - Copper Bronze
R2SD1T	F - 35°	TWB - 2700K-6500K - 98	780 / 1150	2125 / 3105	HZ - Haze
R2SD1T	F - 35°	TWB - 2700K-6500K - 98	780 / 1150	2125 / 3105	HZWT - Haze/White
R2SD1T	F - 35°	TWB - 2700K-6500K - 98	780 / 1150	2125 / 3105	WT - White
R2SD1T	N - 25°	TWA - 1800K-4000K - 98	690 / 950	2010 / 2730	BK - Black
R2SD1T	N - 25°	TWA - 1800K-4000K - 98	690 / 950	2010 / 2730	BKWT - Black/White
R2SD1T	N - 25°	TWA - 1800K-4000K - 98	690 / 950	2010 / 2730	CB - Copper Bronze
R2SD1T	N - 25°	TWA - 1800K-4000K - 98	690 / 950	2010 / 2730	HZ - Haze
R2SD1T	N - 25°	TWA - 1800K-4000K - 98	690 / 950	2010 / 2730	HZWT - Haze/White
R2SD1T	N - 25°	TWA - 1800K-4000K - 98	690 / 950	2010 / 2730	WT - White
R2SD1T	N - 25°	TWB - 2700K-6500K - 98	595 / 880	2460 / 3630	BK - Black
R2SD1T	N - 25°	TWB - 2700K-6500K - 98	595 / 880	2460 / 3630	BKWT - Black/White
R2SD1T	N - 25°	TWB - 2700K-6500K - 98	595 / 880	2460 / 3630	CB - Copper Bronze
R2SD1T	N - 25°	TWB - 2700K-6500K - 98	595 / 880	2460 / 3630	HZ - Haze
R2SD1T	N - 25°	TWB - 2700K-6500K - 98	595 / 880	2460 / 3630	HZWT - Haze/White
R2SD1T	N - 25°	TWB - 2700K-6500K - 98	595 / 880	2460 / 3630	WT - White
R2SD1T	W - 45°	TWA - 1800K-4000K - 98	550 / 745	920 / 1240	BK - Black
R2SD1T	W - 45°	TWA - 1800K-4000K - 98	550 / 745	920 / 1240	BKWT - Black/White
R2SD1T	W - 45°	TWA - 1800K-4000K - 98	550 / 745	920 / 1240	CB - Copper Bronze
R2SD1T	W - 45°	TWA - 1800K-4000K - 98	550 / 745	920 / 1240	HZ - Haze
R2SD1T	W - 45°	TWA - 1800K-4000K - 98	550 / 745	920 / 1240	HZWT - Haze/White
R2SD1T	W - 45°	TWA - 1800K-4000K - 98	550 / 745	920 / 1240	WT - White
R2SD1T	W - 45°	TWB - 2700K-6500K - 98	540 / 805	1015 / 1500	BK - Black
R2SD1T	W - 45°	TWB - 2700K-6500K - 98	540 / 805	1015 / 1500	BKWT - Black/White
R2SD1T	W - 45°	TWB - 2700K-6500K - 98	540 / 805	1015 / 1500	CB - Copper Bronze
R2SD1T	W - 45°	TWB - 2700K-6500K - 98	540 / 805	1015 / 1500	HZ - Haze
R2SD1T	W - 45°	TWB - 2700K-6500K - 98	540 / 805	1015 / 1500	HZWT - Haze/White
R2SD1T	W - 45°	TWB - 2700K-6500K - 98	540 / 805	1015 / 1500	WT - White
