Specifications
Order Number:
| model | beam | color temp & cri | 15w / 22w lumens | finish |
|---|---|---|---|---|
| R2SWT | A - Asym | TWA - 1800K-4000K - 98 | 460 / 635 | BK - Black |
| R2SWT | A - Asym | TWA - 1800K-4000K - 98 | 460 / 635 | BKWT - Black/White |
| R2SWT | A - Asym | TWA - 1800K-4000K - 98 | 460 / 635 | CB - Copper Bronze |
| R2SWT | A - Asym | TWA - 1800K-4000K - 98 | 460 / 635 | HZ - Haze |
| R2SWT | A - Asym | TWA - 1800K-4000K - 98 | 460 / 635 | HZWT - Haze/White |
| R2SWT | A - Asym | TWA - 1800K-4000K - 98 | 460 / 635 | WT - White |
| R2SWT | A - Asym | TWB - 2700K-6500K - 98 | 395 / 585 | BK - Black |
| R2SWT | A - Asym | TWB - 2700K-6500K - 98 | 395 / 585 | BKWT - Black/White |
| R2SWT | A - Asym | TWB - 2700K-6500K - 98 | 395 / 585 | CB - Copper Bronze |
| R2SWT | A - Asym | TWB - 2700K-6500K - 98 | 395 / 585 | HZ - Haze |
| R2SWT | A - Asym | TWB - 2700K-6500K - 98 | 395 / 585 | HZWT - Haze/White |
| R2SWT | A - Asym | TWB - 2700K-6500K - 98 | 395 / 585 | WT - White |
Features
- Delivered Lumens: 635lm
- CCT: 1800K-4000K, 2700K-6500K
- CRI: 98
- Power: 15W, 22W
- Rated Life: 50000 Hours
- Construction: Durable die-cast self-flanged aluminum construction
- Innovative bi-directional spread lens
- Engineered for even wall illumination both vertically and horizontally
- Dual finishes are single piece, no physical seam
- Natural and Vivid Precision LED CCT Tuning

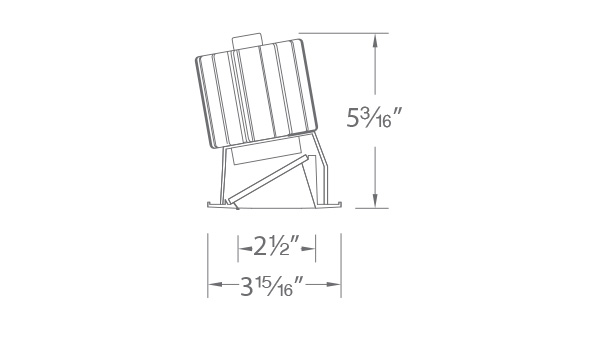

Line Drawing
