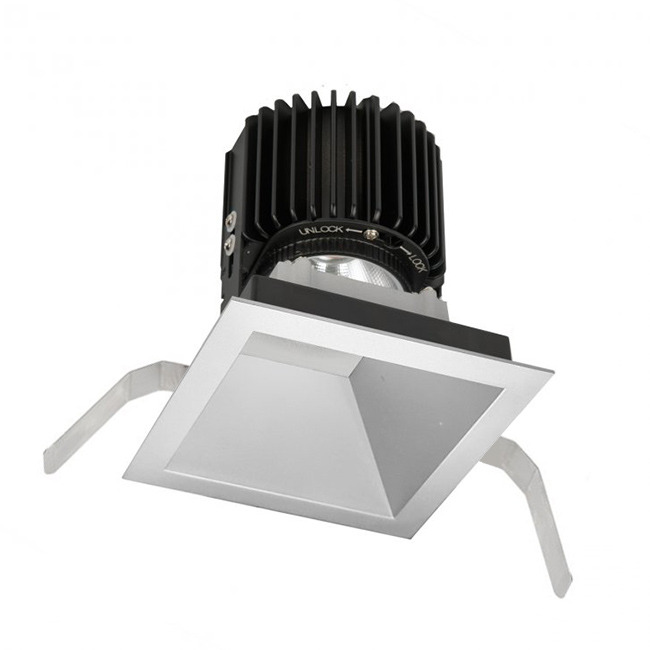

Volta 4.5″ Tunable White Downlight Trim Square

NEW

NEW

model	beam	color temp & cri	20w / 29w / 44w lumens	20w / 29w / 44w cbcp	finish
R4SD2T	F - 45°	TWA - 1800K-4000K - 98	1100 / 1640 / 2315	1825 / 2690 / 3805	BK - Black
R4SD2T	F - 45°	TWA - 1800K-4000K - 98	1100 / 1640 / 2315	1825 / 2690 / 3805	BKWT - Black/White
R4SD2T	F - 45°	TWA - 1800K-4000K - 98	1100 / 1640 / 2315	1825 / 2690 / 3805	CB - Copper Bronze
R4SD2T	F - 45°	TWA - 1800K-4000K - 98	1100 / 1640 / 2315	1825 / 2690 / 3805	HZ - Haze
R4SD2T	F - 45°	TWA - 1800K-4000K - 98	1100 / 1640 / 2315	1825 / 2690 / 3805	HZWT - Haze/White
R4SD2T	F - 45°	TWA - 1800K-4000K - 98	1100 / 1640 / 2315	1825 / 2690 / 3805	WT - White
R4SD2T	F - 45°	TWB - 2700K-6500K - 98	1255 / 1860 / 2640	2015 / 2965 / 4220	BK - Black
R4SD2T	F - 45°	TWB - 2700K-6500K - 98	1255 / 1860 / 2640	2015 / 2965 / 4220	BKWT - Black/White
R4SD2T	F - 45°	TWB - 2700K-6500K - 98	1255 / 1860 / 2640	2015 / 2965 / 4220	CB - Copper Bronze
R4SD2T	F - 45°	TWB - 2700K-6500K - 98	1255 / 1860 / 2640	2015 / 2965 / 4220	HZ - Haze
R4SD2T	F - 45°	TWB - 2700K-6500K - 98	1255 / 1860 / 2640	2015 / 2965 / 4220	HZWT - Haze/White
R4SD2T	F - 45°	TWB - 2700K-6500K - 98	1255 / 1860 / 2640	2015 / 2965 / 4220	WT - White
R4SD2T	N - 25°	TWA - 1800K-4000K - 98	1150 / 1700 / 2445	3210 / 4755 / 6835	BK - Black
R4SD2T	N - 25°	TWA - 1800K-4000K - 98	1150 / 1700 / 2445	3210 / 4755 / 6835	BKWT - Black/White
R4SD2T	N - 25°	TWA - 1800K-4000K - 98	1150 / 1700 / 2445	3210 / 4755 / 6835	CB - Copper Bronze
R4SD2T	N - 25°	TWA - 1800K-4000K - 98	1150 / 1700 / 2445	3210 / 4755 / 6835	HZ - Haze
R4SD2T	N - 25°	TWA - 1800K-4000K - 98	1150 / 1700 / 2445	3210 / 4755 / 6835	HZWT - Haze/White
R4SD2T	N - 25°	TWA - 1800K-4000K - 98	1150 / 1700 / 2445	3210 / 4755 / 6835	WT - White
R4SD2T	N - 25°	TWB - 2700K-6500K - 98	1285 / 1890 / 2680	3525 / 5190 / 7365	BK - Black
R4SD2T	N - 25°	TWB - 2700K-6500K - 98	1285 / 1890 / 2680	3525 / 5190 / 7365	BKWT - Black/White
R4SD2T	N - 25°	TWB - 2700K-6500K - 98	1285 / 1890 / 2680	3525 / 5190 / 7365	CB - Copper Bronze
R4SD2T	N - 25°	TWB - 2700K-6500K - 98	1285 / 1890 / 2680	3525 / 5190 / 7365	HZ - Haze
R4SD2T	N - 25°	TWB - 2700K-6500K - 98	1285 / 1890 / 2680	3525 / 5190 / 7365	HZWT - Haze/White
R4SD2T	N - 25°	TWB - 2700K-6500K - 98	1285 / 1890 / 2680	3525 / 5190 / 7365	WT - White
R4SD2T	W - 60°	TWA - 1800K-4000K - 98	1110 / 1665 / 2345	1255 / 1865 / 2600	BK - Black
R4SD2T	W - 60°	TWA - 1800K-4000K - 98	1110 / 1665 / 2345	1255 / 1865 / 2600	BKWT - Black/White
R4SD2T	W - 60°	TWA - 1800K-4000K - 98	1110 / 1665 / 2345	1255 / 1865 / 2600	CB - Copper Bronze
R4SD2T	W - 60°	TWA - 1800K-4000K - 98	1110 / 1665 / 2345	1255 / 1865 / 2600	HZ - Haze
R4SD2T	W - 60°	TWA - 1800K-4000K - 98	1110 / 1665 / 2345	1255 / 1865 / 2600	HZWT - Haze/White
R4SD2T	W - 60°	TWA - 1800K-4000K - 98	1110 / 1665 / 2345	1255 / 1865 / 2600	WT - White
R4SD2T	W - 60°	TWB - 2700K-6500K - 98	1290 / 1930 / 2715	1385 / 2065 / 2890	BK - Black
R4SD2T	W - 60°	TWB - 2700K-6500K - 98	1290 / 1930 / 2715	1385 / 2065 / 2890	BKWT - Black/White
R4SD2T	W - 60°	TWB - 2700K-6500K - 98	1290 / 1930 / 2715	1385 / 2065 / 2890	CB - Copper Bronze
R4SD2T	W - 60°	TWB - 2700K-6500K - 98	1290 / 1930 / 2715	1385 / 2065 / 2890	HZ - Haze
R4SD2T	W - 60°	TWB - 2700K-6500K - 98	1290 / 1930 / 2715	1385 / 2065 / 2890	HZWT - Haze/White
R4SD2T	W - 60°	TWB - 2700K-6500K - 98	1290 / 1930 / 2715	1385 / 2065 / 2890	WT - White

model

beam

color temp & cri

20w / 29w / 44w lumens

20w / 29w / 44w cbcp

finish

R4SD2T

F - 45°

TWA - 1800K-4000K - 98

1100 / 1640 / 2315

1825 / 2690 / 3805

BK - Black

R4SD2T

F - 45°

TWA - 1800K-4000K - 98

1100 / 1640 / 2315

1825 / 2690 / 3805

BKWT - Black/White

R4SD2T

F - 45°

TWA - 1800K-4000K - 98

1100 / 1640 / 2315

1825 / 2690 / 3805

CB - Copper Bronze

R4SD2T

F - 45°

TWA - 1800K-4000K - 98

1100 / 1640 / 2315

1825 / 2690 / 3805

HZ - Haze

R4SD2T

F - 45°

TWA - 1800K-4000K - 98

1100 / 1640 / 2315

1825 / 2690 / 3805

HZWT - Haze/White

R4SD2T

F - 45°

TWA - 1800K-4000K - 98

1100 / 1640 / 2315

1825 / 2690 / 3805

WT - White

R4SD2T

F - 45°

TWB - 2700K-6500K - 98

1255 / 1860 / 2640

2015 / 2965 / 4220

BK - Black

R4SD2T

F - 45°

TWB - 2700K-6500K - 98

1255 / 1860 / 2640

2015 / 2965 / 4220

BKWT - Black/White

R4SD2T

F - 45°

TWB - 2700K-6500K - 98

1255 / 1860 / 2640

2015 / 2965 / 4220

CB - Copper Bronze

R4SD2T

F - 45°

TWB - 2700K-6500K - 98

1255 / 1860 / 2640

2015 / 2965 / 4220

HZ - Haze

R4SD2T

F - 45°

TWB - 2700K-6500K - 98

1255 / 1860 / 2640

2015 / 2965 / 4220

HZWT - Haze/White

R4SD2T

F - 45°

TWB - 2700K-6500K - 98

1255 / 1860 / 2640

2015 / 2965 / 4220

WT - White

R4SD2T

N - 25°

TWA - 1800K-4000K - 98

1150 / 1700 / 2445

3210 / 4755 / 6835

BK - Black

R4SD2T

N - 25°

TWA - 1800K-4000K - 98

1150 / 1700 / 2445

3210 / 4755 / 6835

BKWT - Black/White

R4SD2T

N - 25°

TWA - 1800K-4000K - 98

1150 / 1700 / 2445

3210 / 4755 / 6835

CB - Copper Bronze

R4SD2T

N - 25°

TWA - 1800K-4000K - 98

1150 / 1700 / 2445

3210 / 4755 / 6835

HZ - Haze

R4SD2T

N - 25°

TWA - 1800K-4000K - 98

1150 / 1700 / 2445

3210 / 4755 / 6835

HZWT - Haze/White

R4SD2T

N - 25°

TWA - 1800K-4000K - 98

1150 / 1700 / 2445

3210 / 4755 / 6835

WT - White

R4SD2T

N - 25°

TWB - 2700K-6500K - 98

1285 / 1890 / 2680

3525 / 5190 / 7365

BK - Black

R4SD2T

N - 25°

TWB - 2700K-6500K - 98

1285 / 1890 / 2680

3525 / 5190 / 7365

BKWT - Black/White

R4SD2T

N - 25°

TWB - 2700K-6500K - 98

1285 / 1890 / 2680

3525 / 5190 / 7365

CB - Copper Bronze

R4SD2T

N - 25°

TWB - 2700K-6500K - 98

1285 / 1890 / 2680

3525 / 5190 / 7365

HZ - Haze

R4SD2T

N - 25°

TWB - 2700K-6500K - 98

1285 / 1890 / 2680

3525 / 5190 / 7365

HZWT - Haze/White

R4SD2T

N - 25°

TWB - 2700K-6500K - 98

1285 / 1890 / 2680

3525 / 5190 / 7365

WT - White

R4SD2T

W - 60°

TWA - 1800K-4000K - 98

1110 / 1665 / 2345

1255 / 1865 / 2600

BK - Black

R4SD2T

W - 60°

TWA - 1800K-4000K - 98

1110 / 1665 / 2345

1255 / 1865 / 2600

BKWT - Black/White

R4SD2T

W - 60°

TWA - 1800K-4000K - 98

1110 / 1665 / 2345

1255 / 1865 / 2600

CB - Copper Bronze

R4SD2T

W - 60°

TWA - 1800K-4000K - 98

1110 / 1665 / 2345

1255 / 1865 / 2600

HZ - Haze

R4SD2T

W - 60°

TWA - 1800K-4000K - 98

1110 / 1665 / 2345

1255 / 1865 / 2600

HZWT - Haze/White

R4SD2T

W - 60°

TWA - 1800K-4000K - 98

1110 / 1665 / 2345

1255 / 1865 / 2600

WT - White

R4SD2T

W - 60°

TWB - 2700K-6500K - 98

1290 / 1930 / 2715

1385 / 2065 / 2890

BK - Black

R4SD2T

W - 60°

TWB - 2700K-6500K - 98

1290 / 1930 / 2715

1385 / 2065 / 2890

BKWT - Black/White

R4SD2T

W - 60°

TWB - 2700K-6500K - 98

1290 / 1930 / 2715

1385 / 2065 / 2890

CB - Copper Bronze

R4SD2T

W - 60°

TWB - 2700K-6500K - 98

1290 / 1930 / 2715

1385 / 2065 / 2890

HZ - Haze

R4SD2T

W - 60°

TWB - 2700K-6500K - 98

1290 / 1930 / 2715

1385 / 2065 / 2890

HZWT - Haze/White

R4SD2T

W - 60°

TWB - 2700K-6500K - 98

1290 / 1930 / 2715

1385 / 2065 / 2890

WT - White
