Specifications
Order Number:
| model & product | l x w x h |
|---|---|
| PS-24DC-288R-TW-DU - 288W 120-277VAC INPUT 24VDC PSC in BLACK | 12 15/16” X 4 3/4” X 1 3/4” |
Features
- Input: 120-277 VAC, 50/60Hz
- Compatible with Duet product family for tunable white and dim-to warm lighting using 2-wire technology.
- Compatible with WAC-Mesh WallStation and Portable Gateway for enhanced functionality.
- Works with the MyWAC app on iOS and Android for control from anywhere.
- Supports cloud connectivity with voice control via Google Assistant and Amazon Alexa.
- 3 X 96W (288W), > 0.9 pf
- Built-in protections: short circuit, overcurrent, overvoltage, and overtemperature.
- Fully integrates with WAC-Mesh systems for advanced scene, zone, and group management.
- Can be mounted on ceiling or wall in all orientations

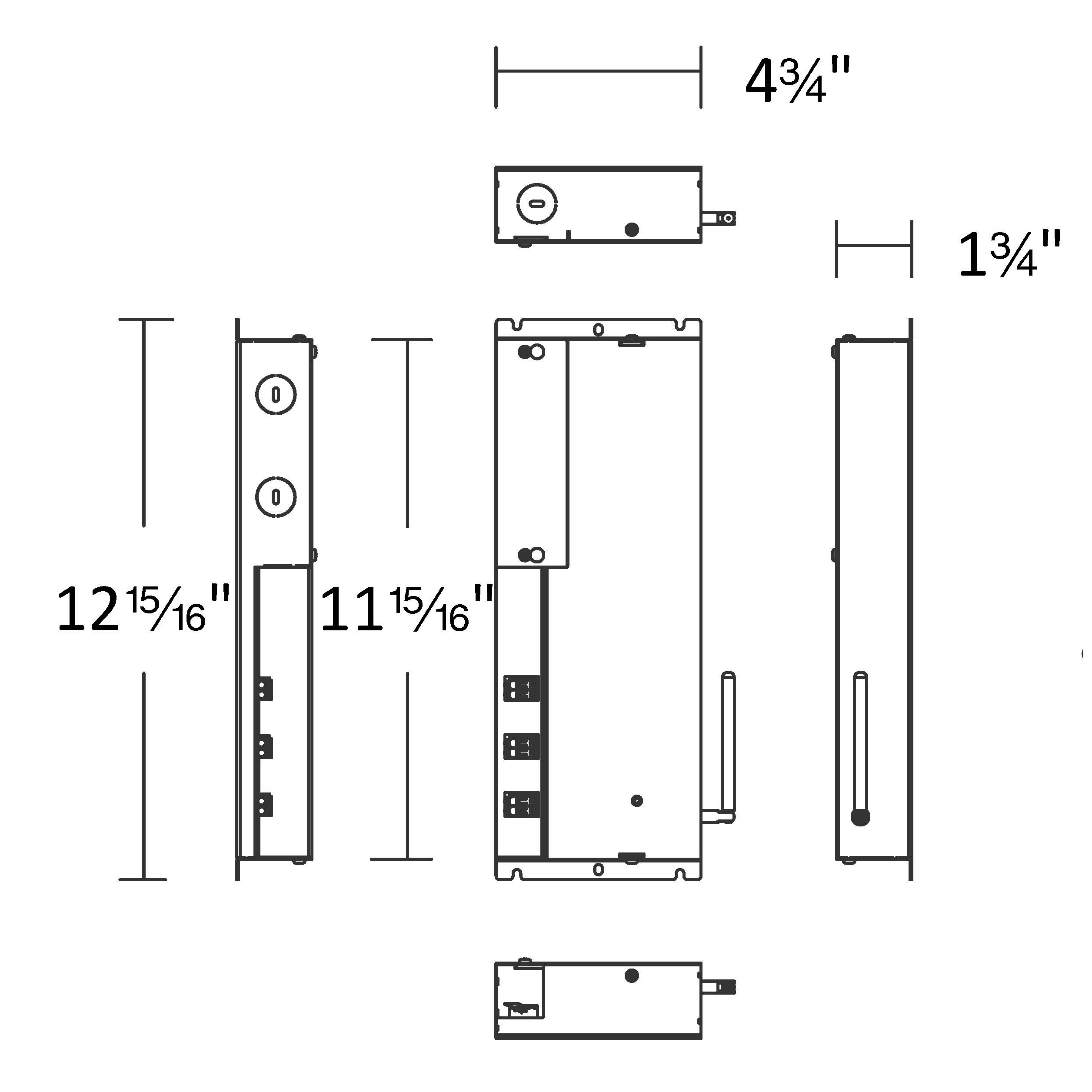

Line Drawing
