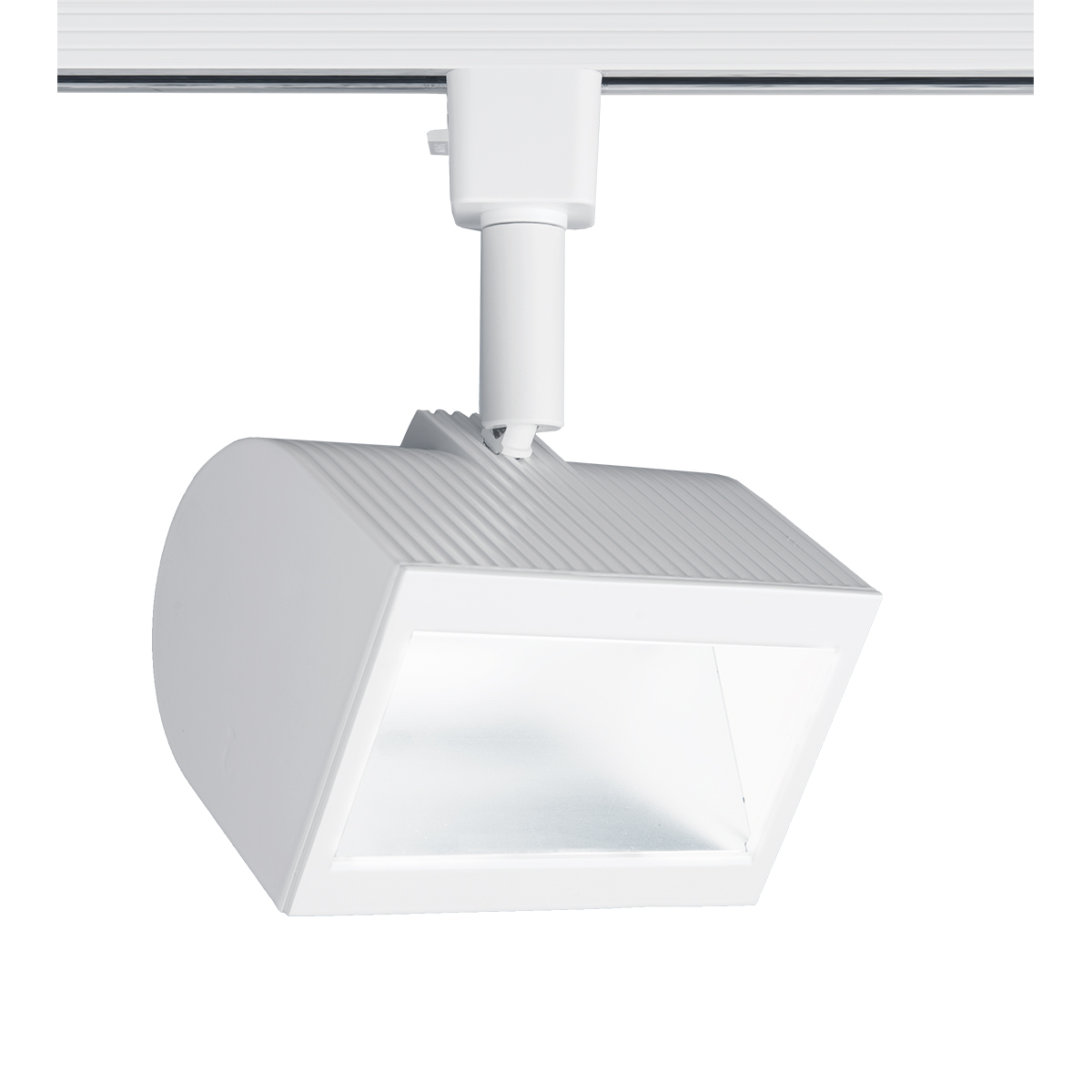

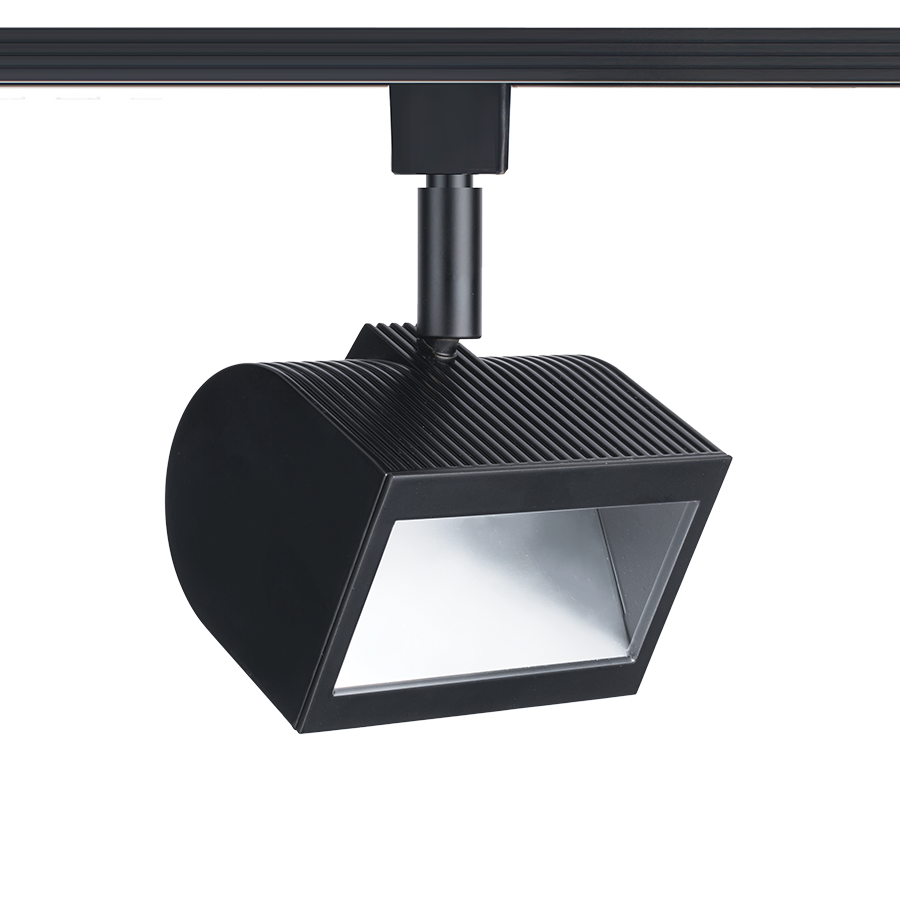

Wall Wash 3020W 20W H/J/L Track Luminaire

wall-wash-3020w
wall-wash-3020w
wall-wash-3020w
Where to Buy

Specifications Limited Availability, Consult Factory

Limited Availability, Consult Factory Order Number:
system type & voltage model color temp & cri lumens finish
H - 120 VAC 3020W 27 - 2700K - 90 885 BK - Black
H - 120 VAC 3020W 27 - 2700K - 90 885 WT - White
H - 120 VAC 3020W 30 - 3000K - 90 925 BK - Black
H - 120 VAC 3020W 30 - 3000K - 90 925 WT - White
H - 120 VAC 3020W 35 - 3500K - 90 1030 BK - Black
H - 120 VAC 3020W 35 - 3500K - 90 1030 WT - White
H - 120 VAC 3020W 40 - 4000K - 90 1035 BK - Black
H - 120 VAC 3020W 40 - 4000K - 90 1035 WT - White
J - 120 VAC 3020W 27 - 2700K - 90 885 BK - Black
J - 120 VAC 3020W 27 - 2700K - 90 885 WT - White
J - 120 VAC 3020W 30 - 3000K - 90 925 BK - Black
J - 120 VAC 3020W 30 - 3000K - 90 925 WT - White
J - 120 VAC 3020W 35 - 3500K - 90 1030 BK - Black
J - 120 VAC 3020W 35 - 3500K - 90 1030 WT - White
J - 120 VAC 3020W 40 - 4000K - 90 1035 BK - Black
J - 120 VAC 3020W 40 - 4000K - 90 1035 WT - White
L - 120 VAC 3020W 27 - 2700K - 90 885 BK - Black
L - 120 VAC 3020W 27 - 2700K - 90 885 WT - White
L - 120 VAC 3020W 30 - 3000K - 90 925 BK - Black
L - 120 VAC 3020W 30 - 3000K - 90 925 WT - White
L - 120 VAC 3020W 35 - 3500K - 90 1030 BK - Black
L - 120 VAC 3020W 35 - 3500K - 90 1030 WT - White
L - 120 VAC 3020W 40 - 4000K - 90 1035 BK - Black
L - 120 VAC 3020W 40 - 4000K - 90 1035 WT - White

Features

  • Delivered Lumens: Up to 1035lm
  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: 90
  • Power: 20W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Construction: Die-cast aluminum
  • Asymmetrical beam distribution for even wall illumination
  • 350° horizontal rotation and 90° vertical aiming
  • Economical performance luminaire with integral LED and driver
  • Driver concealed within the fixture

Line Drawing
