WL-LED310 Step And Wall Light

Specifications

Order Number:
model & voltage color temp & cri lumens finish
WL-LED310 - 120 VAC Amber - 90 115 BN - Brushed Nickel
WL-LED310 - 120 VAC Amber - 90 115 BZ - Bronze on Aluminum
WL-LED310 - 120 VAC Amber - 90 115 WT - White on Aluminum
WL-LED310 - 120 VAC Blue - 90 115 BN - Brushed Nickel
WL-LED310 - 120 VAC Blue - 90 115 BZ - Bronze on Aluminum
WL-LED310 - 120 VAC Blue - 90 115 WT - White on Aluminum
WL-LED310 - 120 VAC 3000K - 90 115 BN - Brushed Nickel
WL-LED310 - 120 VAC 3000K - 90 115 BZ - Bronze on Aluminum
WL-LED310 - 120 VAC 3000K - 90 115 WT - White on Aluminum
WL-LED310 - 120 VAC Red - 90 115 BN - Brushed Nickel
WL-LED310 - 120 VAC Red - 90 115 BZ - Bronze on Aluminum
WL-LED310 - 120 VAC Red - 90 115 WT - White on Aluminum

Features

  • Delivered Lumens: 115lm
  • CCT: 3000K, Amber, Blue, Red
  • CRI: 90
  • Power: 3.9W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Die-cast corrosion resistant aluminum alloy
  • Low profile, flush to wall aesthetics with no visible hardware
  • Balanced lighting, free of shadows with minimum glare
  • Up to 200 fixtures can be connected in parallel

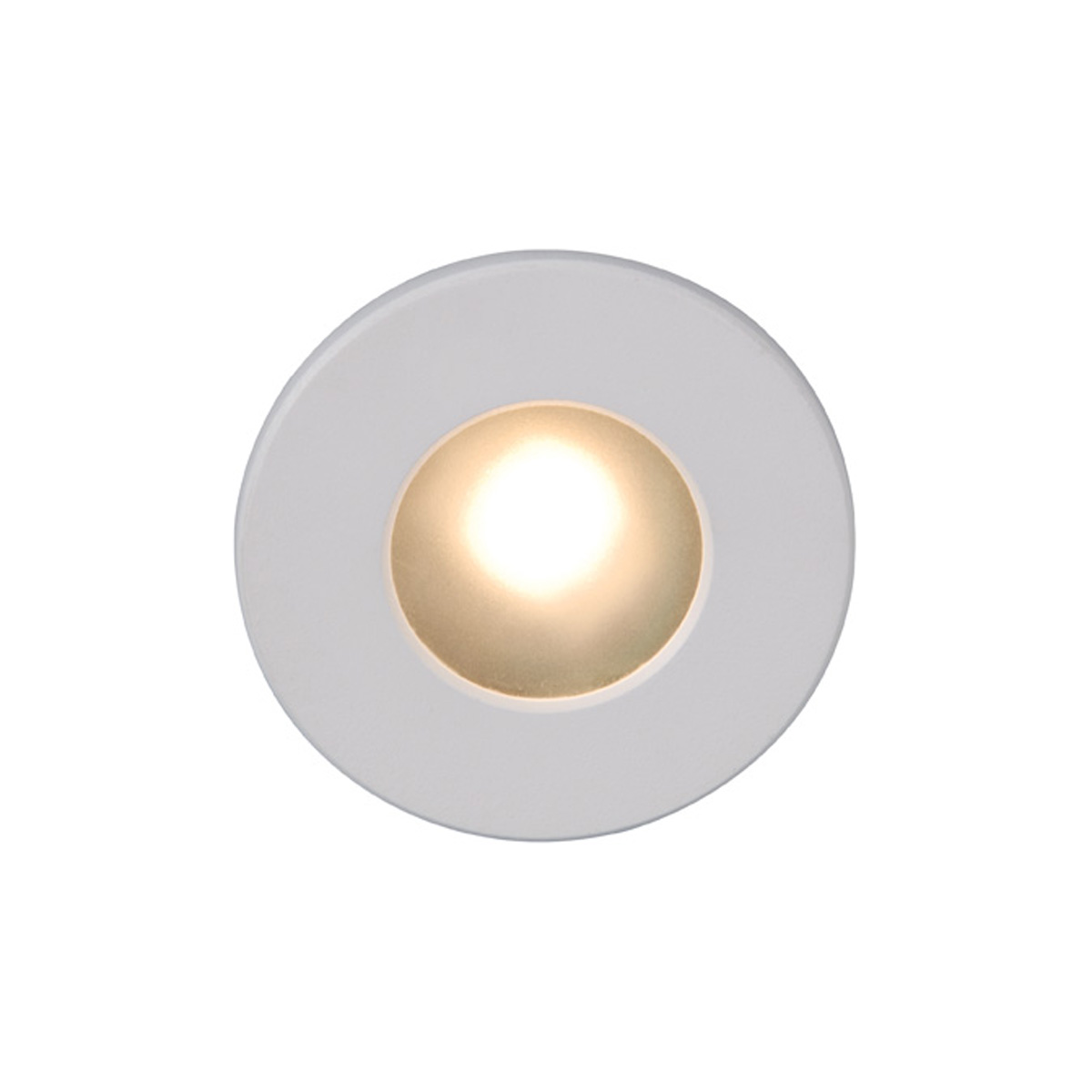

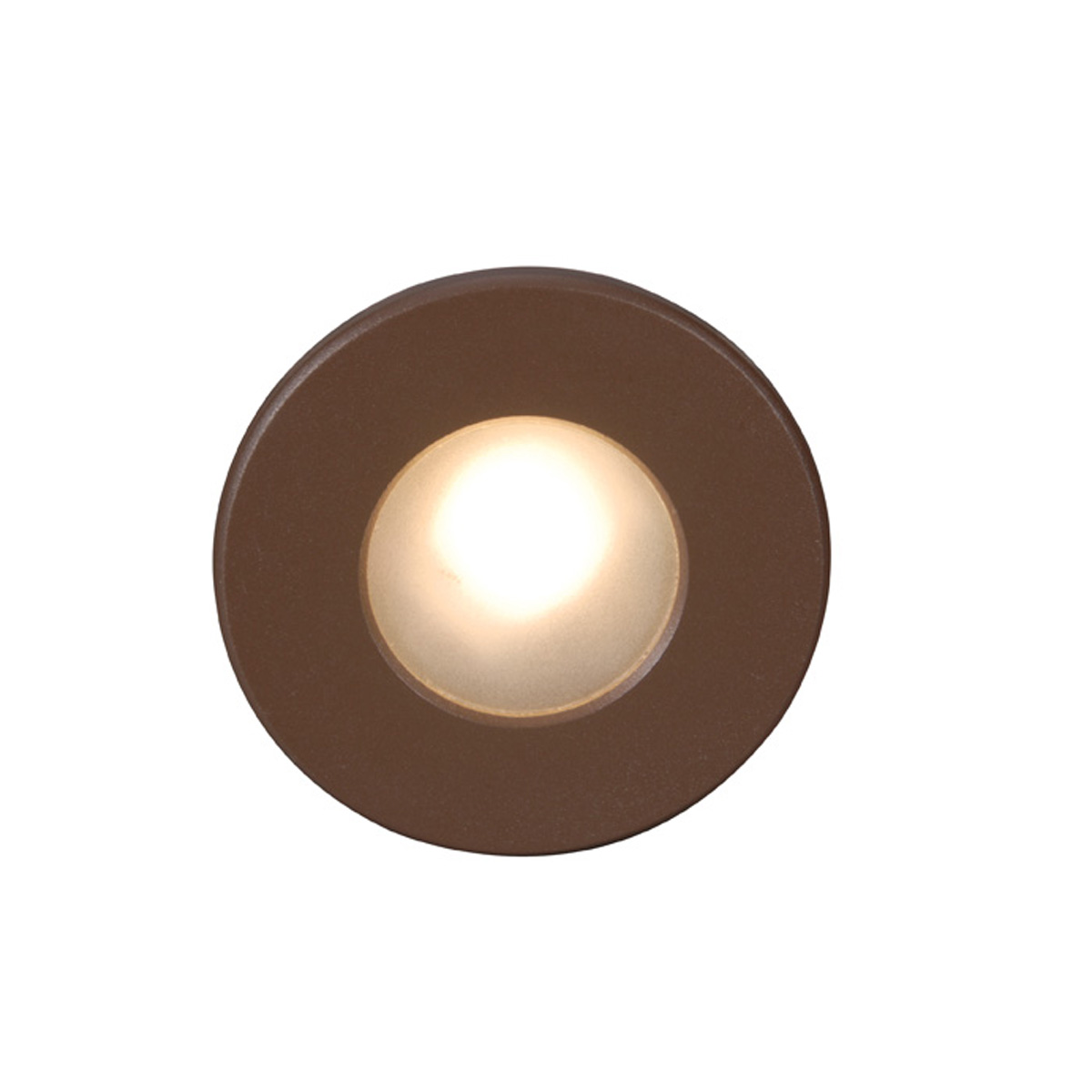

Gallery

Line Drawing
