Specifications
Retired
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| FM-46010 - 10" | 3000K | AB - Aged Brass | 14W | 1400 | 702 |
| FM-46010 - 10" | 3000K | BN - Brushed Nickel | 14W | 1400 | 702 |
| FM-46014 - 14" | 3000K | AB - Aged Brass | 31W | 2800 | 1616 |
| FM-46014 - 14" | 3000K | BN - Brushed Nickel | 31W | 2800 | 1616 |
Features
- Delivered Lumens: 1616lm
- CCT: 3000K
- CRI: 90
- Power: 14W, 31W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware with opal glass diffuser
- FM-46010 is ADA compliant, low profile design
- ACLED driverless technology

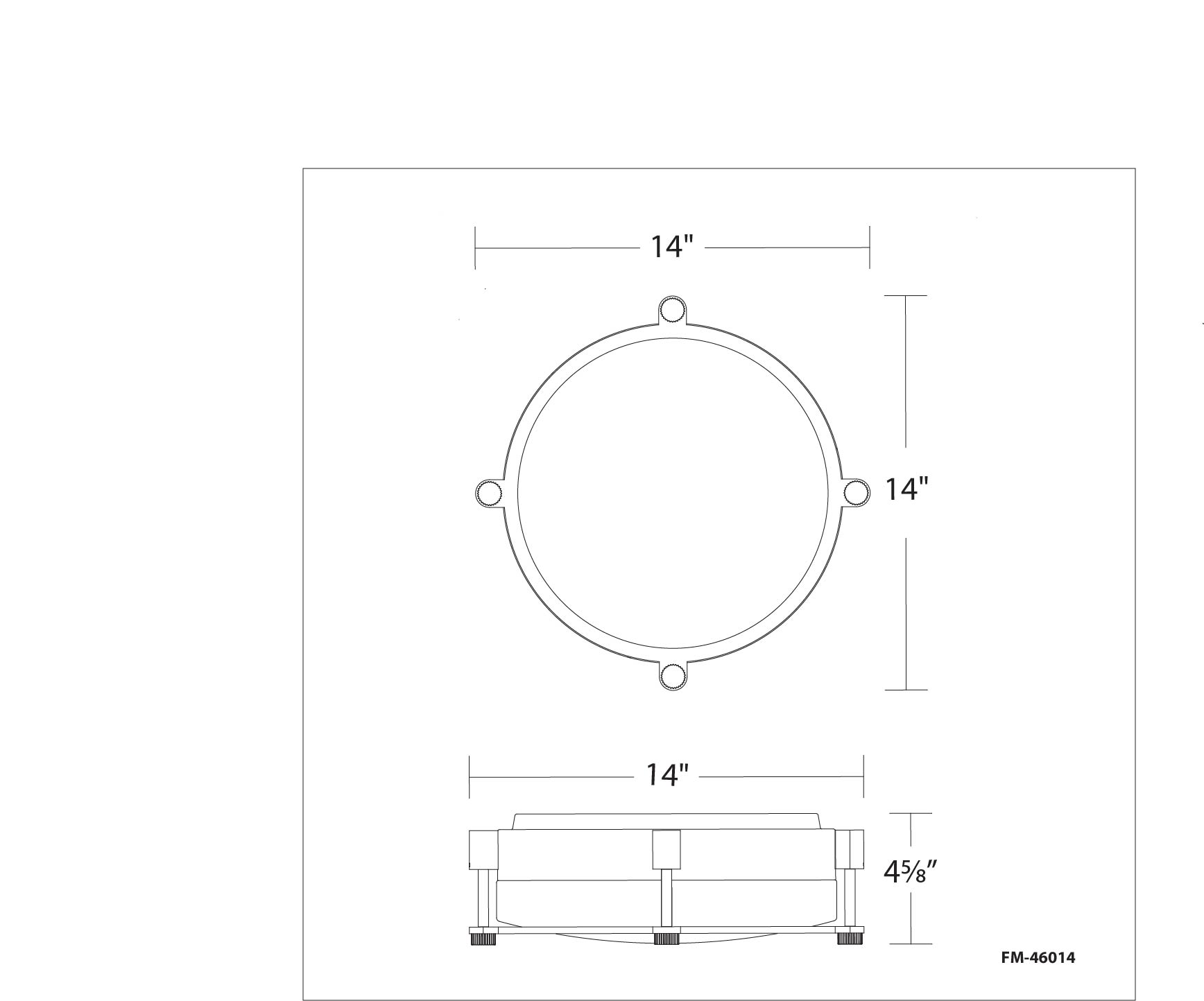

Line Drawing
