Specifications
Order Number:
| model | beam | color temp & cri | lumens | cbcp | finish |
|---|---|---|---|---|---|
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | BKBK - Black/Black |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | BKCH - Black/Chrome |

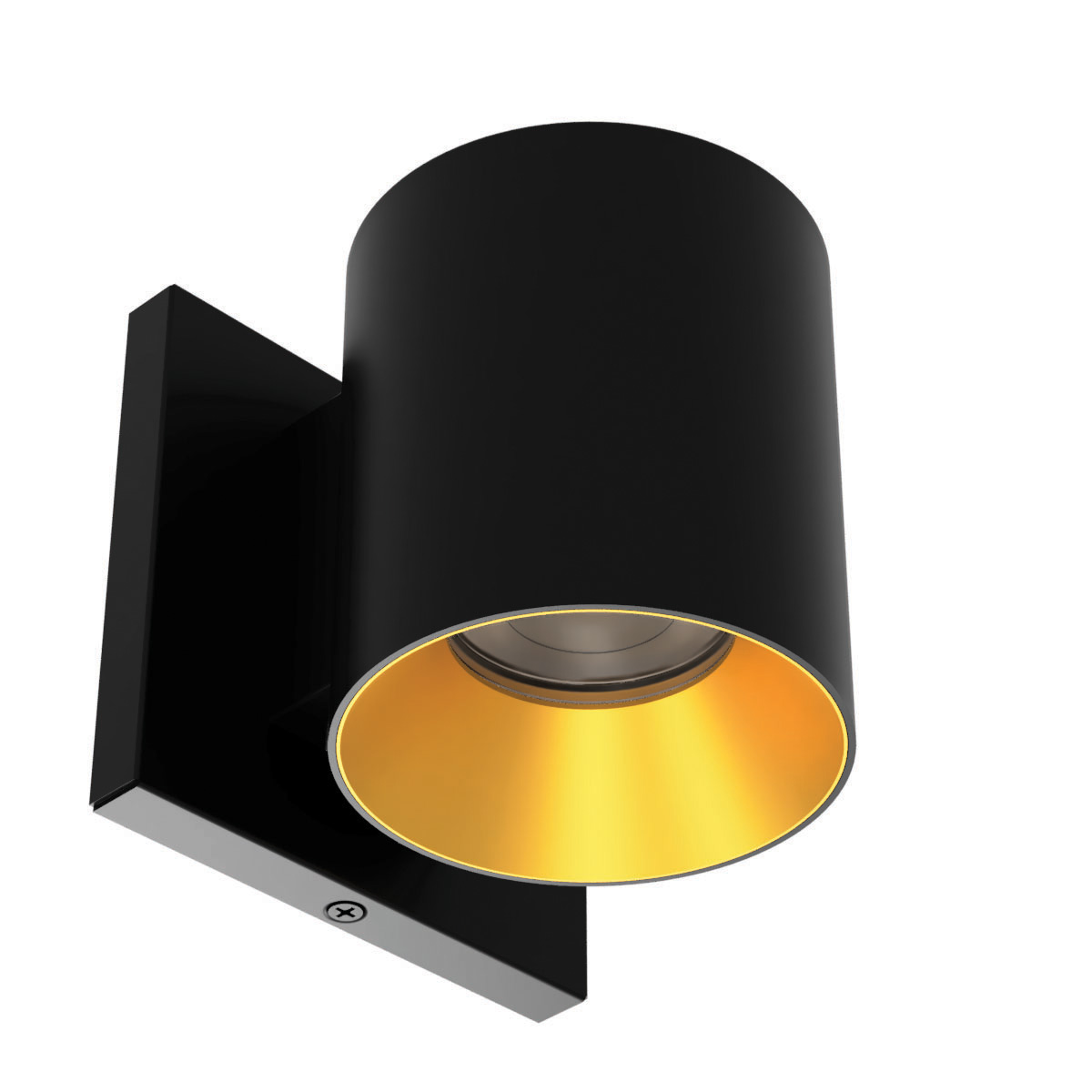

| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | BKGL - Black/Gold |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | BKHZ - Black/Haze |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | BKWT - Black/White |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1240 | 2275 | PBK - Arc Black |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1240 | 2275 | PWT - Arc White |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | WTBK - White/Black |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | WTCH - White/Chrome |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | WTGL - White/Gold |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | WTHZ - White/Haze |
| W4R | F - 45° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1320 | 2265 | WTWT - White/White |
| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | BKBK - Black/Black |
| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | BKCH - Black/Chrome |
| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | BKGL - Black/Gold |

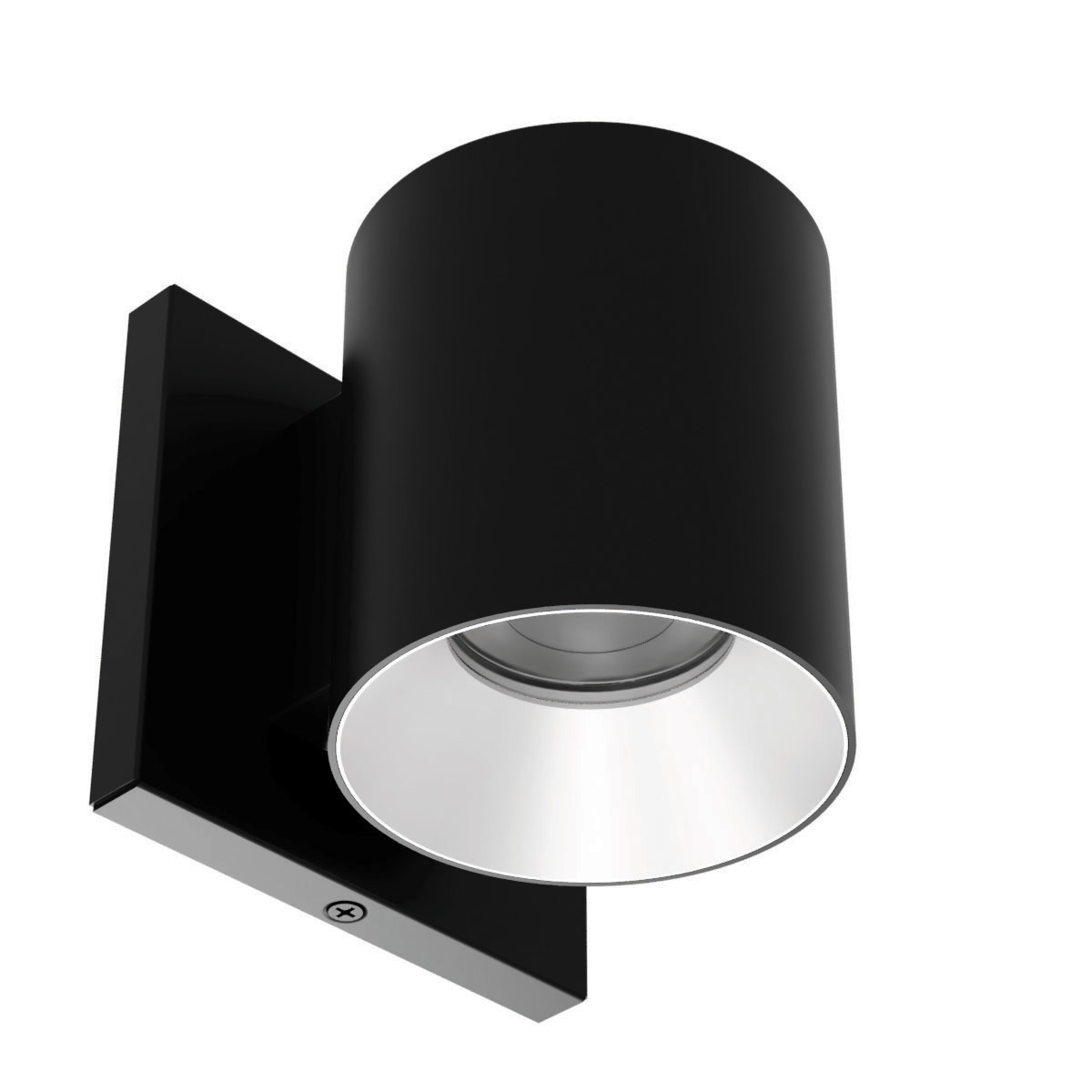

| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | BKHZ - Black/Haze |
| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | BKWT - Black/White |
| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1060 | 3585 | PBK - Arc Black |

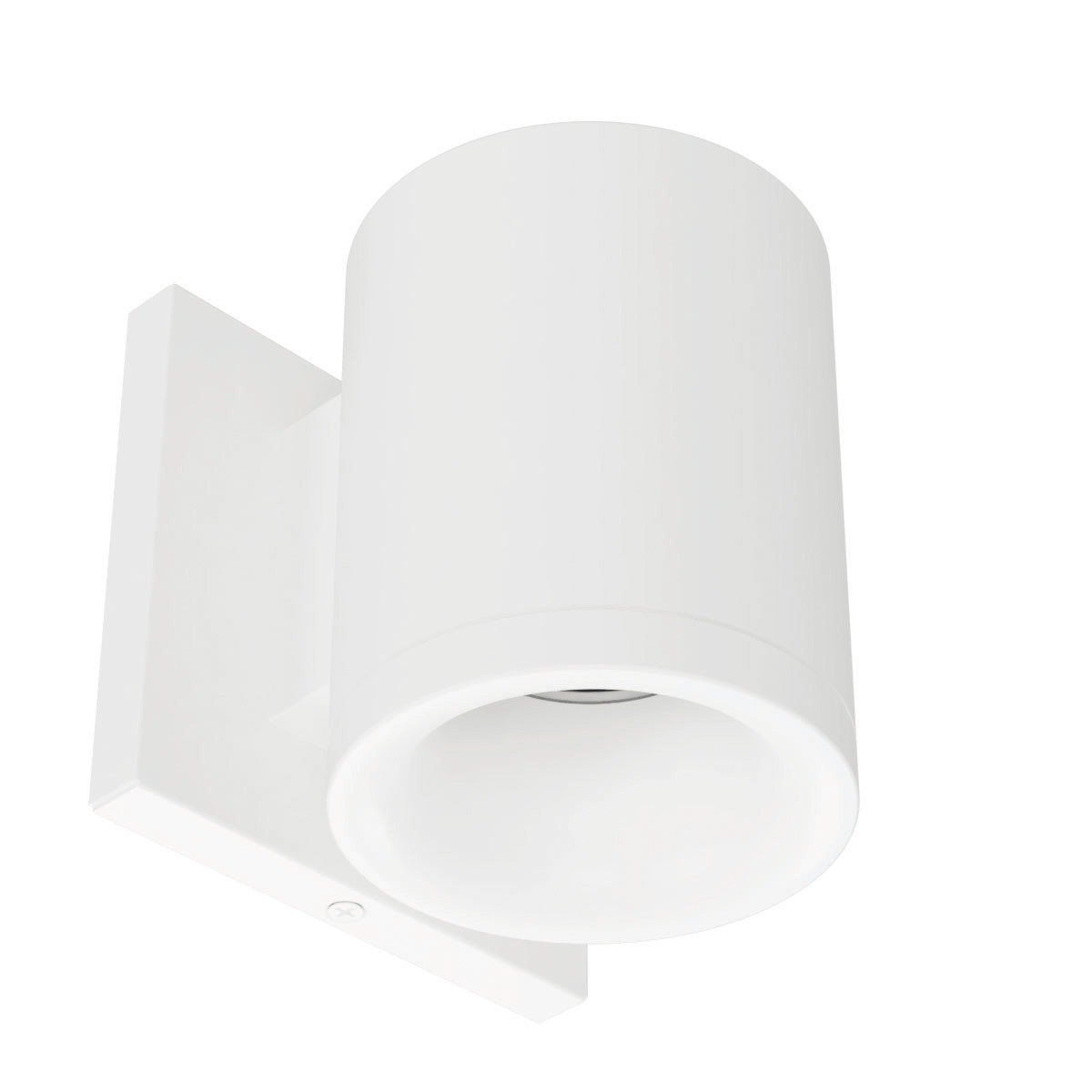

| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1060 | 3585 | PWT - Arc White |

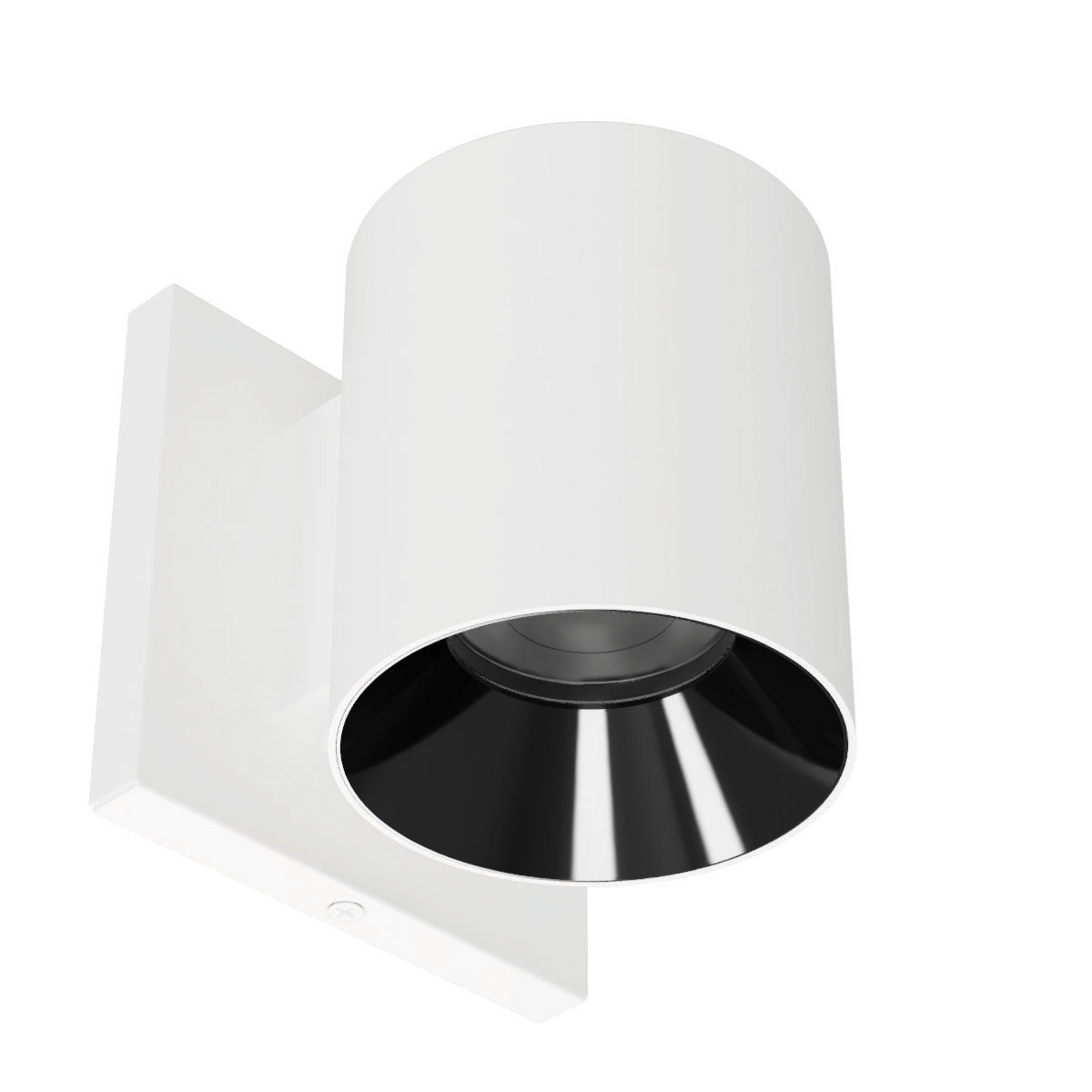

| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | WTBK - White/Black |

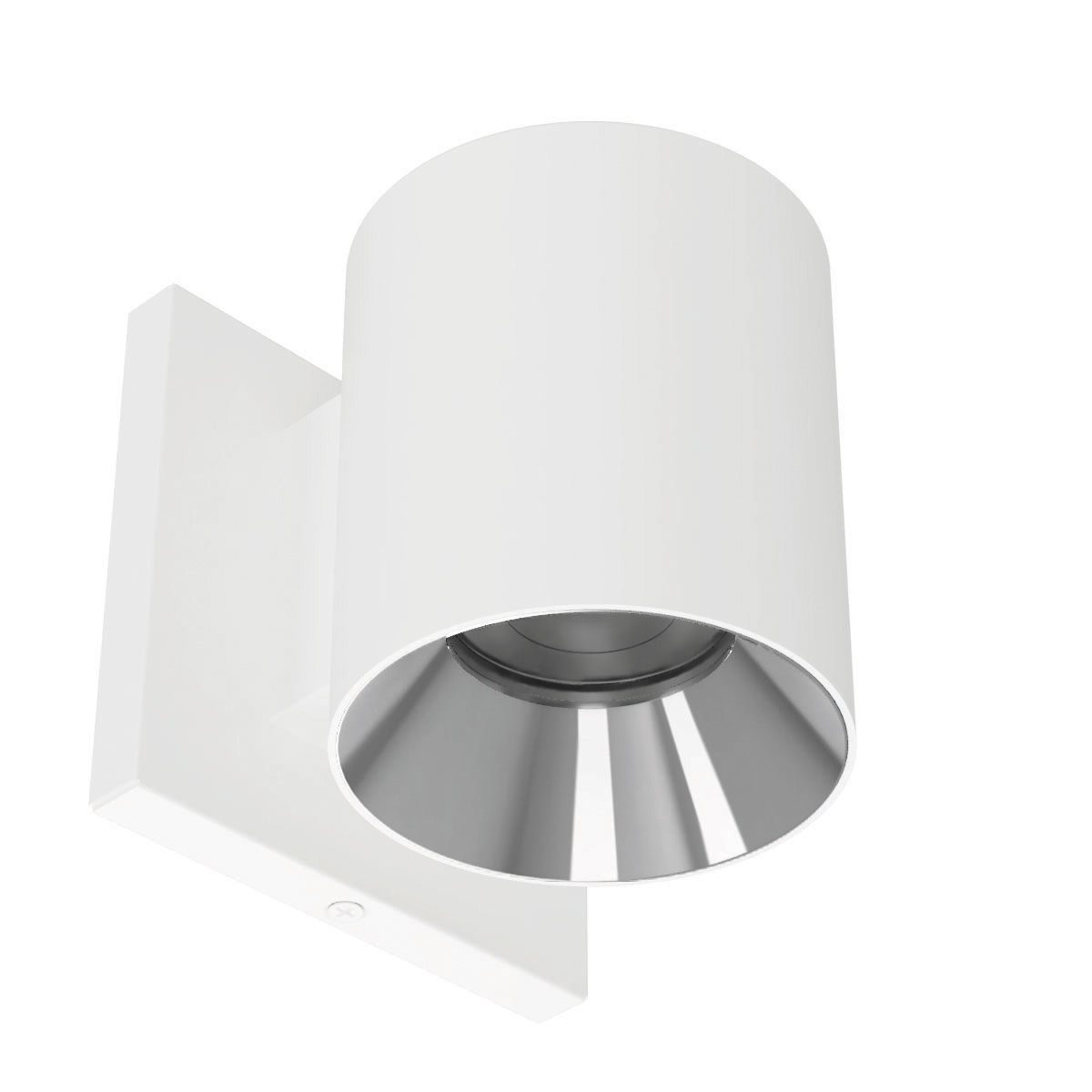

| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | WTCH - White/Chrome |

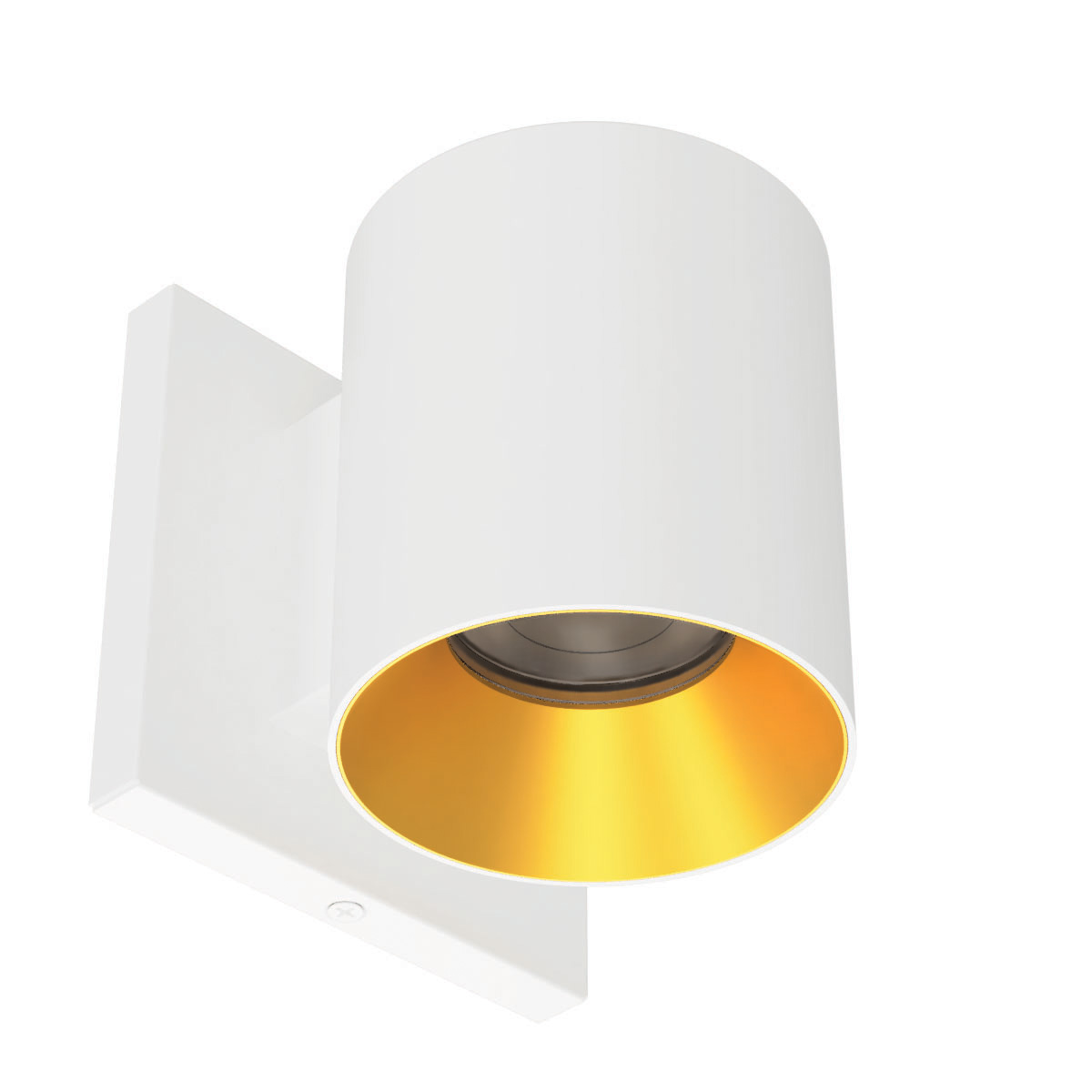

| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | WTGL - White/Gold |
| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | WTHZ - White/Haze |

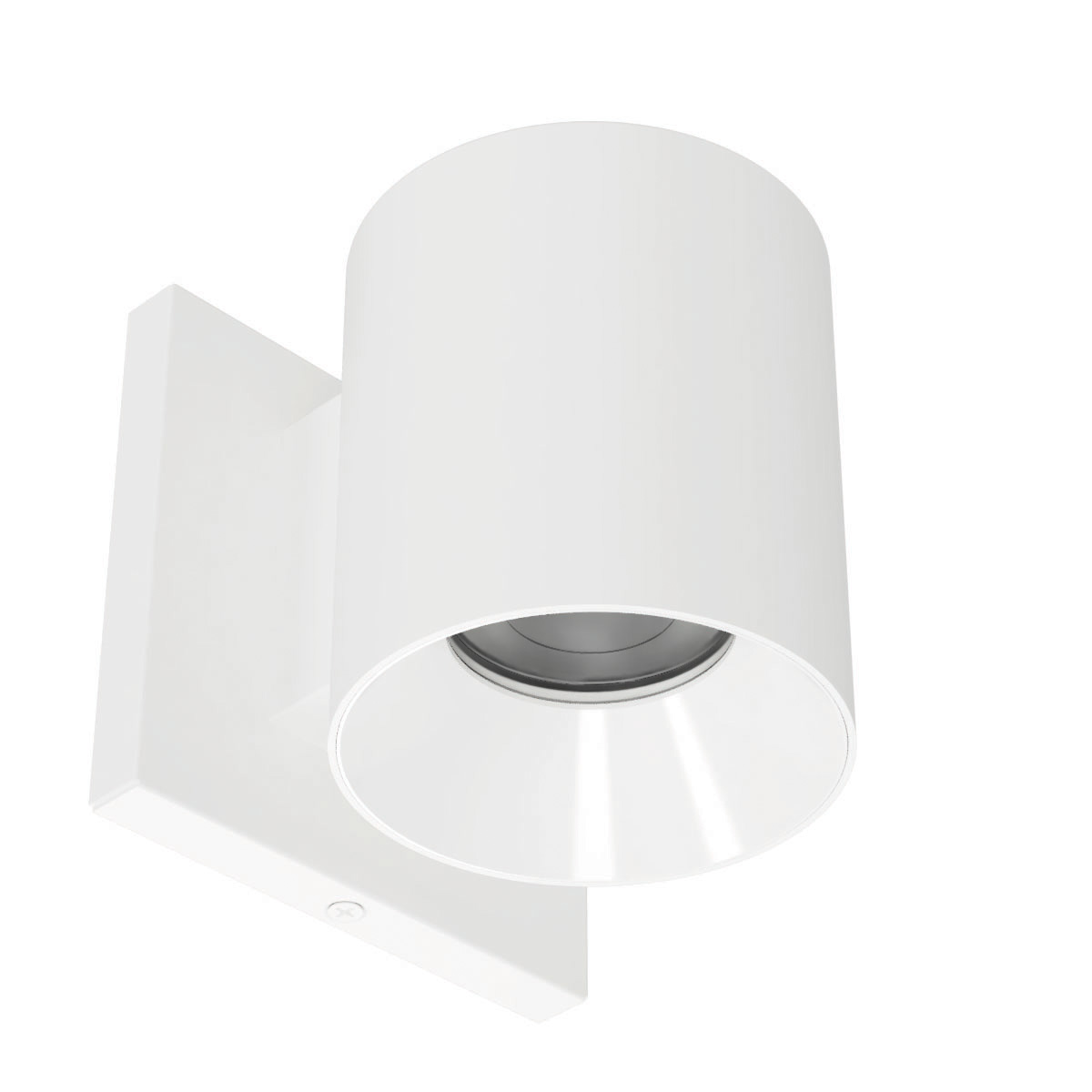

| W4R | N - 25° | CS - 2700K/3000K/3500K/4000K/5000K - 90 | 1185 | 3485 | WTWT - White/White |
Features
- Delivered Lumens: Up to 1320lm
- CBCP: Up to 3585
- CCT: 2700K/3000K/3500K/4000K/5000K
- CRI: 90
- Power: 15W
- Input: 120-277 VAC, 50/60Hz
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-5%
- TRIAC Dimming: 100-5%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- 5-CCT Switchable between 2700K and 5000K
- Suitable for indoor or outdoor use
- Low glare regressed trim with 25°+ shielding angle
- Interchangeable trim available in 7 finishes
- ELV/ TRIAC/0-10V Dimming Control
- Universal Input 120-277VAC
- Outdoor/Wet Location Rated for downward-facing orientation only
- Driver concealed within the fixture

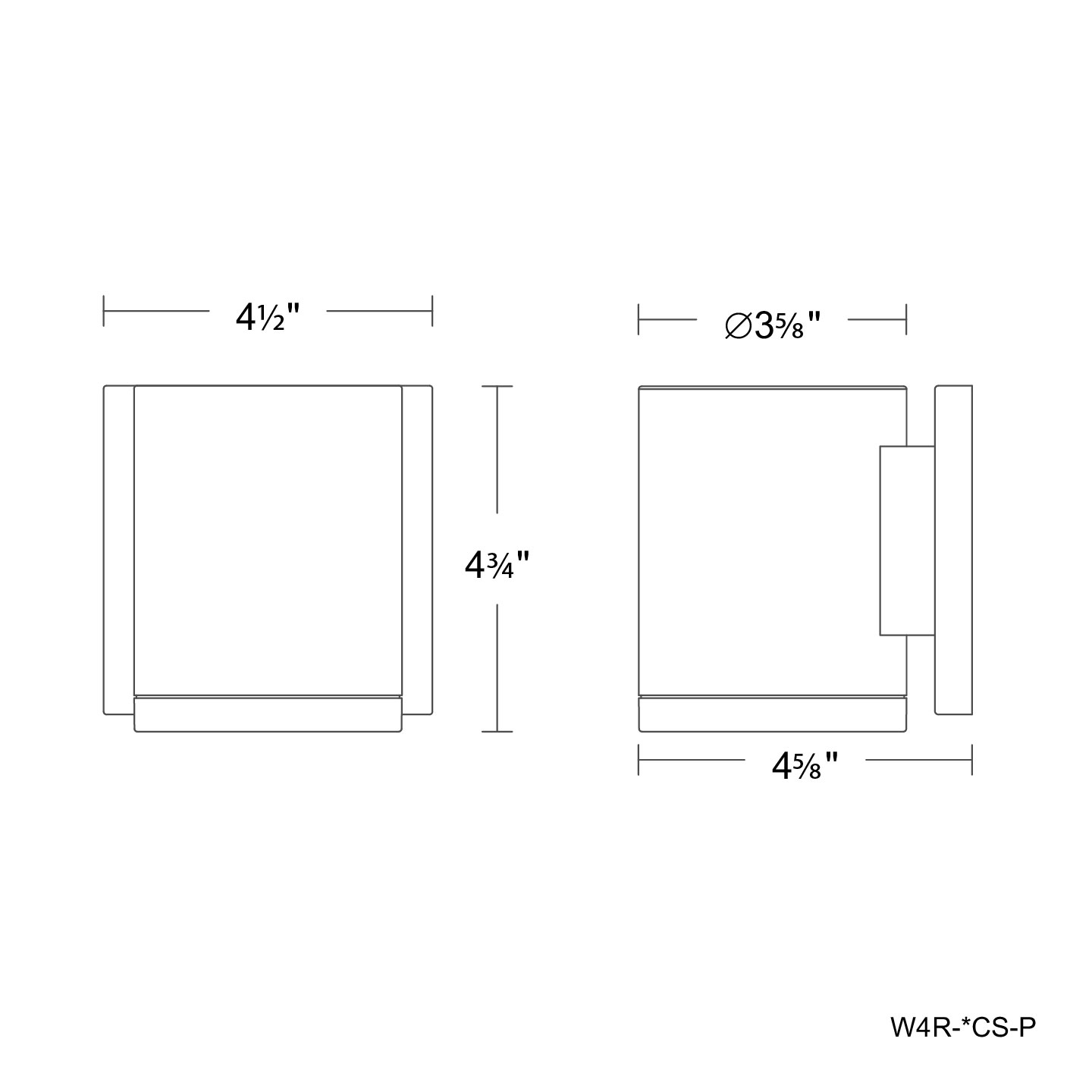

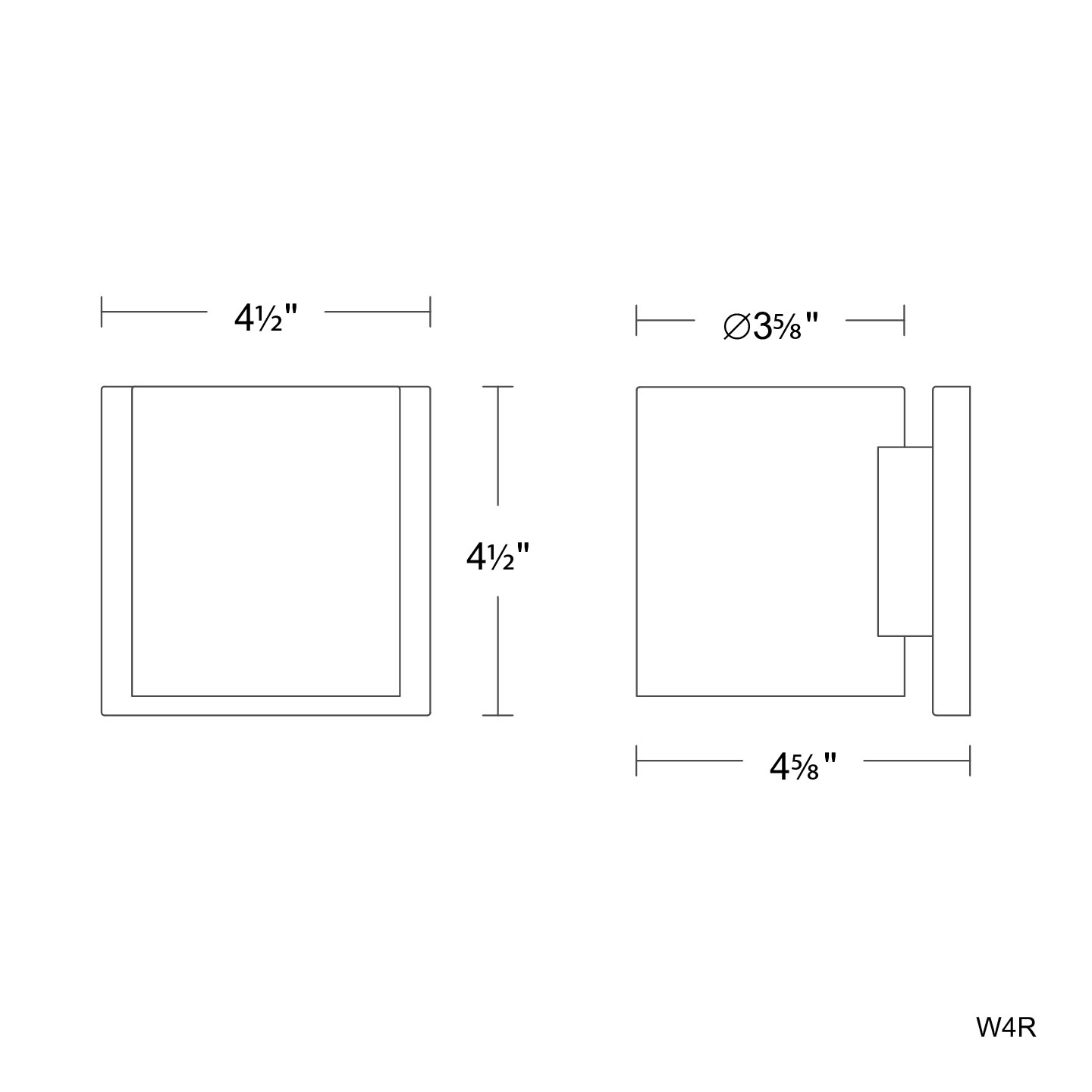

Line Drawing
