Specifications
Retired
Order Number:
| model & size | color temp & cri | watt | lumens | finish |
|---|---|---|---|---|
| LS-LED08 - 8" | C - 4500K - 85 | 3W | 115 | WT - White |
| LS-LED08 - 8" | W - 2700K - 85 | 3W | 105 | WT - White |
| LS-LED14 - 14" | C - 4500K - 85 | 5W | 215 | WT - White |
| LS-LED14 - 14" | W - 2700K - 85 | 5W | 205 | WT - White |
| LS-LED20 - 20" | C - 4500K - 85 | 7W | 315 | WT - White |
| LS-LED20 - 20" | W - 2700K - 85 | 7W | 315 | WT - White |
| LS-LED26 - 26" | C - 4500K - 85 | 10W | 485 | WT - White |
| LS-LED26 - 26" | W - 2700K - 85 | 10W | 345 | WT - White |
| LS-LED32 - 32" | C - 4500K - 85 | 12.5W | 620 | WT - White |
| LS-LED32 - 32" | W - 2700K - 85 | 12.5W | 450 | WT - White |
Features
- Delivered Lumens: Up to 620lm
- CCT: 2700K, 4500K
- CRI: 85
- Power: 3W, 5W, 7W, 10W, 12.5W
- Input: 24 VAC, 50/60Hz
- ELV Dimming: 100-1%
- Rated Life: 70000 Hours

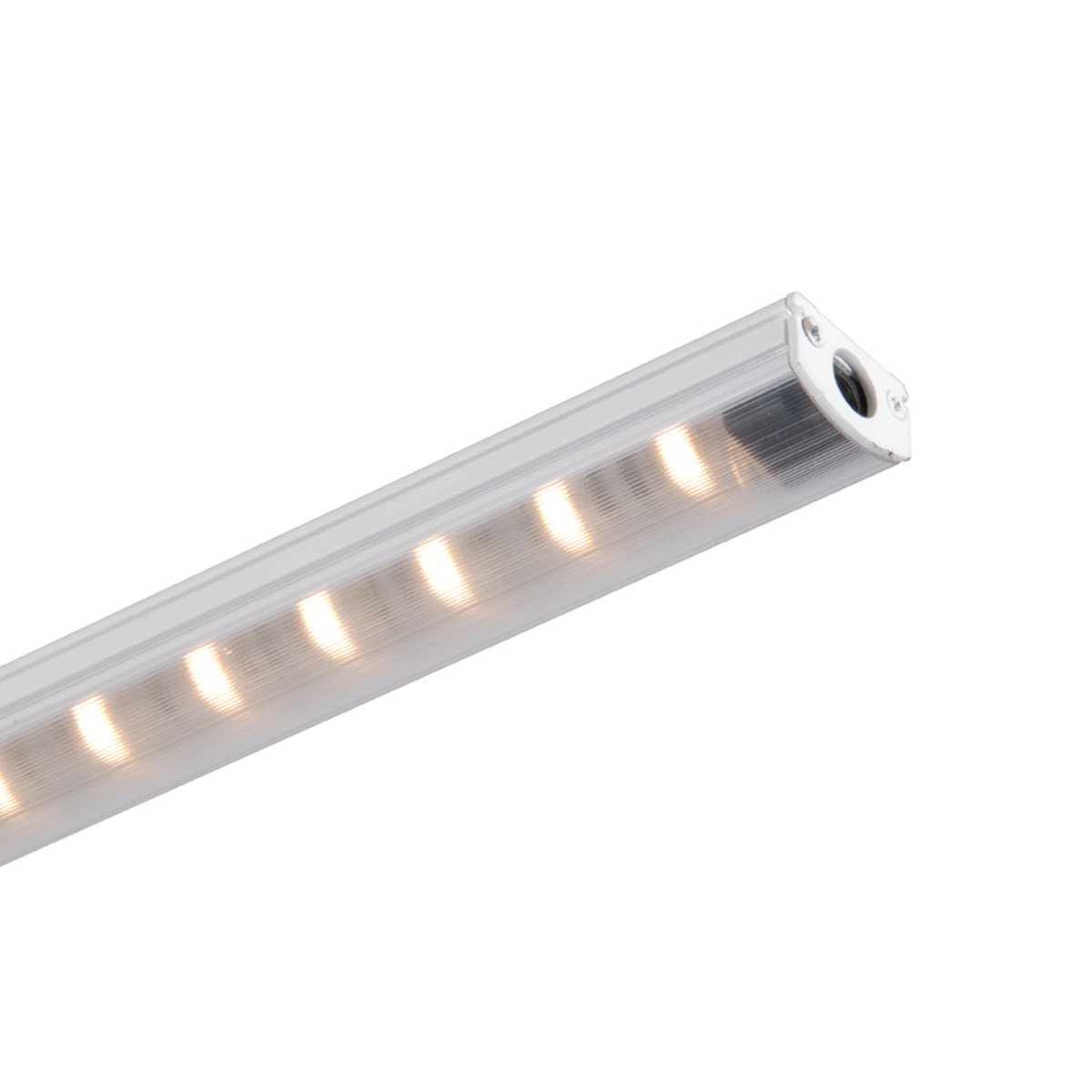

- Construction: Extruded aluminum body
- Multiple connectors and cables available to facilitate custom layouts
- Four mounting options provided for different surfaces
- Each section includes 2 flat mounting clips, 2 45° angle mounting clips and 1 "I" connector

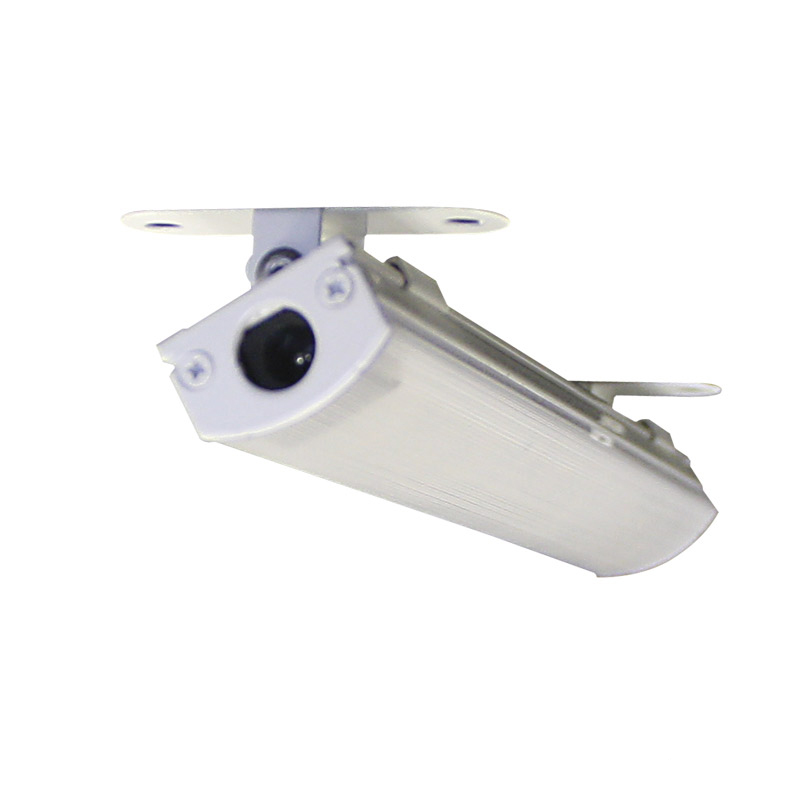

- Adjustable angle mounting clips allow fixture to be easily aimed while securely mounted for optimal task lighting performance and flexibility
- 120° beam spread
- Free of projected heat, UV and IR radiation
- Transformer required
Line Drawing
