Specifications
Order Number:
| system type | model | color temp & cri | lumens | cbcp | finish |
|---|---|---|---|---|---|
| X | 10 | 27 - 2700K - 90 | 20°: 290 / 70°: 600 | 20°: 2105 / 70°: 500 | BK - Black |
| X | 10 | 27 - 2700K - 90 | 20°: 290 / 70°: 600 | 20°: 2105 / 70°: 500 | WT - White |
| X | 10 | 30 - 3000K - 90 | 20°: 305 / 70°: 630 | 20°: 2230 / 70°: 530 | BK - Black |
| X | 10 | 30 - 3000K - 90 | 20°: 305 / 70°: 630 | 20°: 2230 / 70°: 530 | WT - White |
Features
- Delivered Lumens: Up to 630lm
- CBCP: Up to 2230
- CCT: 2700K, 3000K
- CRI: 90
- Power: 12W
- Input: 9-15 VAC, 50/60Hz
- MLV Dimming: 100-5%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum
- Continuously adjustable and lockable beam angles from 20° - 70° with indexed adjustment markings
- Fixtures are polarity agnostic and may be installed to track in either orientation
- High power factor (PF) electronics for optimized VA rating (12W, 12VA)
- Accommodates one lens accessory and one glare control accessory (accessory holder required, sold separately)
- Track heads install toollessly onto WAC outdoor track system with a patent pending wire piercing adapter
- Transformer required
- Can be mounted on ceiling or wall in all orientations

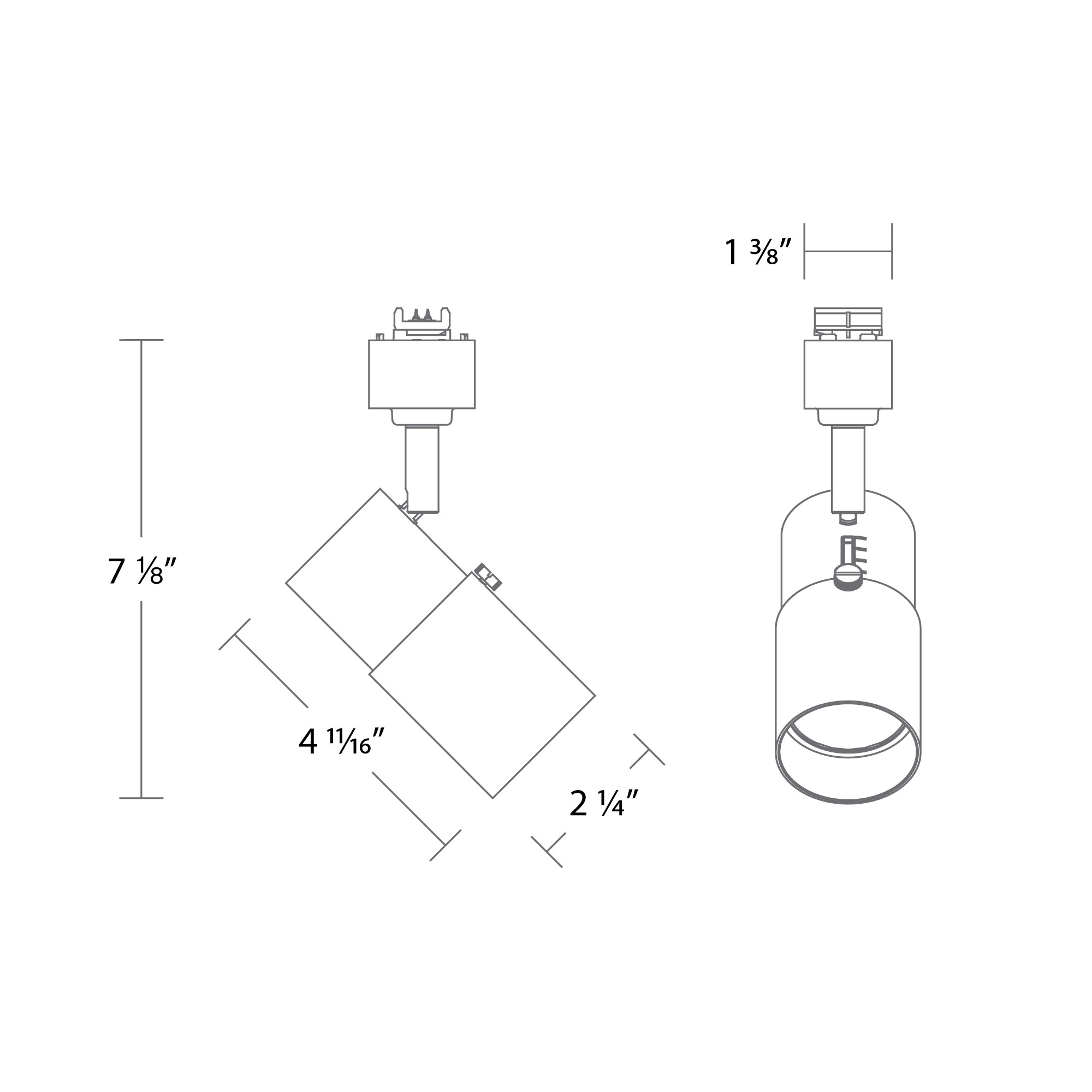

Line Drawing
